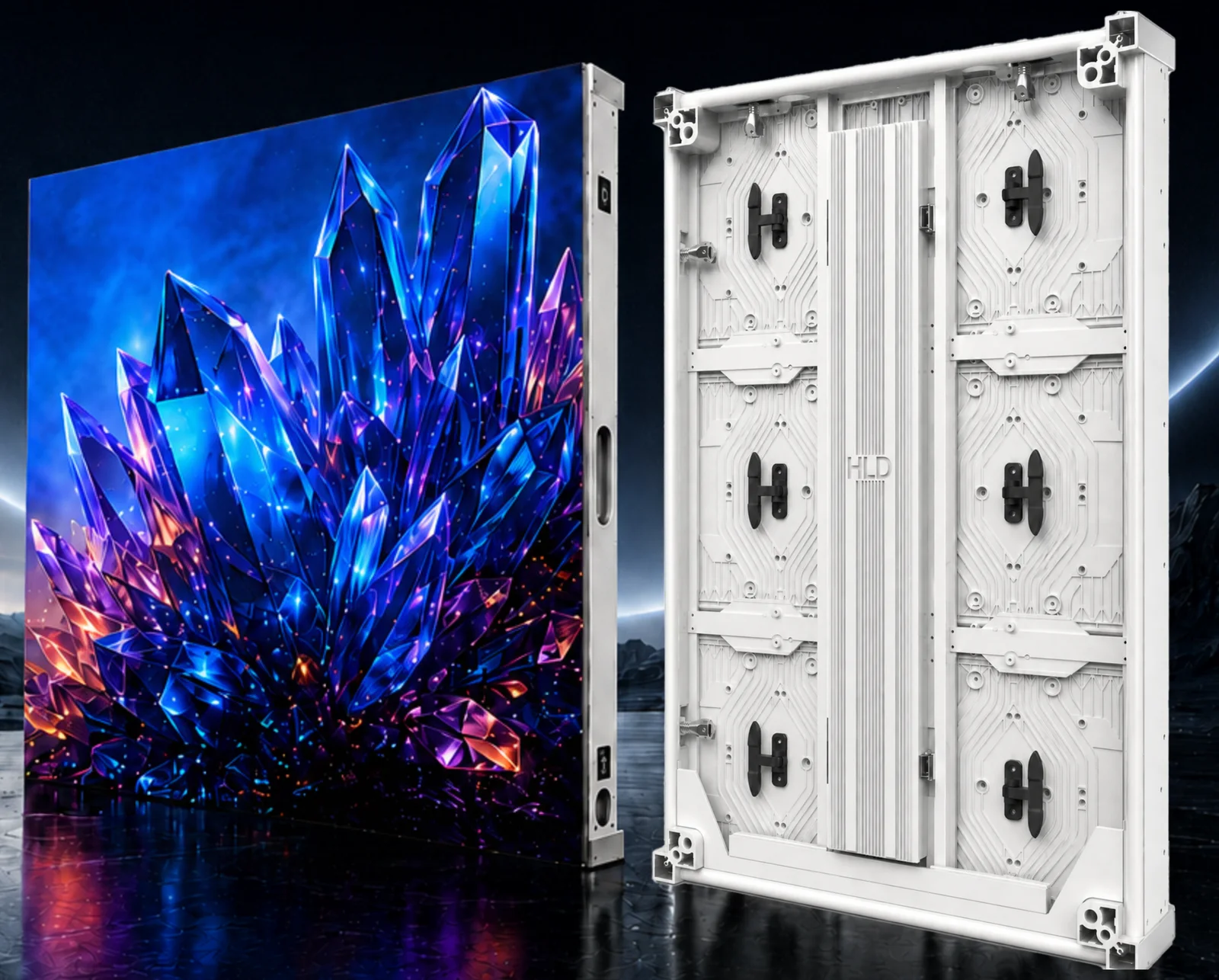

OUTDOOR / CA SERIES · CRYSTAL ARRAY
Bring every detail
into the light.
Fine-pitch outdoor LED from P1.3 — IP66, common cathode and front & rear service, for screens people see up close.
Fine-pitch outdoor series01 / FINE PITCH, OUTDOORS
Sharp up close.
Bright in the sun.
Outdoor screens usually look good only from far away. Crystal Array brings P1.3–P2.97 outside, so bus stops, storefronts and plazas stay crisp at a few metres.
- nits (≥4,000 for CA1.3)
- ≥5,000
- contrast
- 8,000:1
- viewing angle
- 140° / 120°
- bit gray scale
- 14–16
02 / ENGINEERED FOR OUTDOOR PERFORMANCE
Built to perform.
In any environment.
Energy-saving common cathode drive, IP66 sealing and service from both sides of the wall.
- 01
Common cathode energy saving
Less energy loss and heat for lower operating cost and better efficiency.
- 02

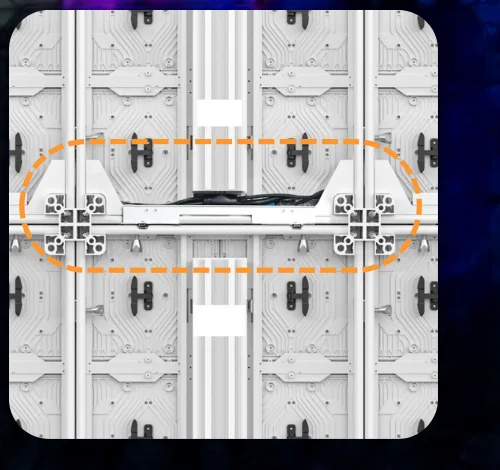

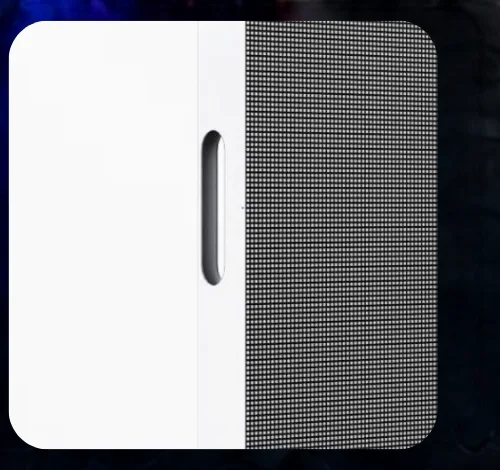

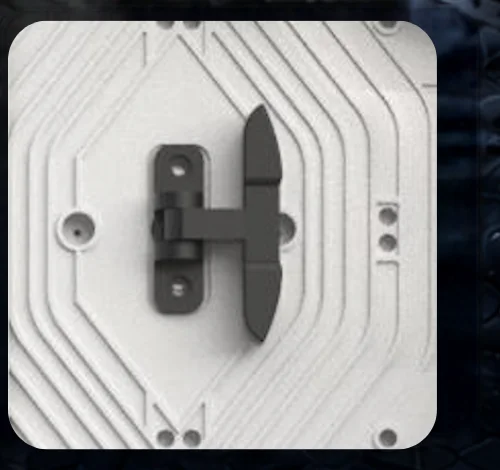

Quick installation & easy maintenance

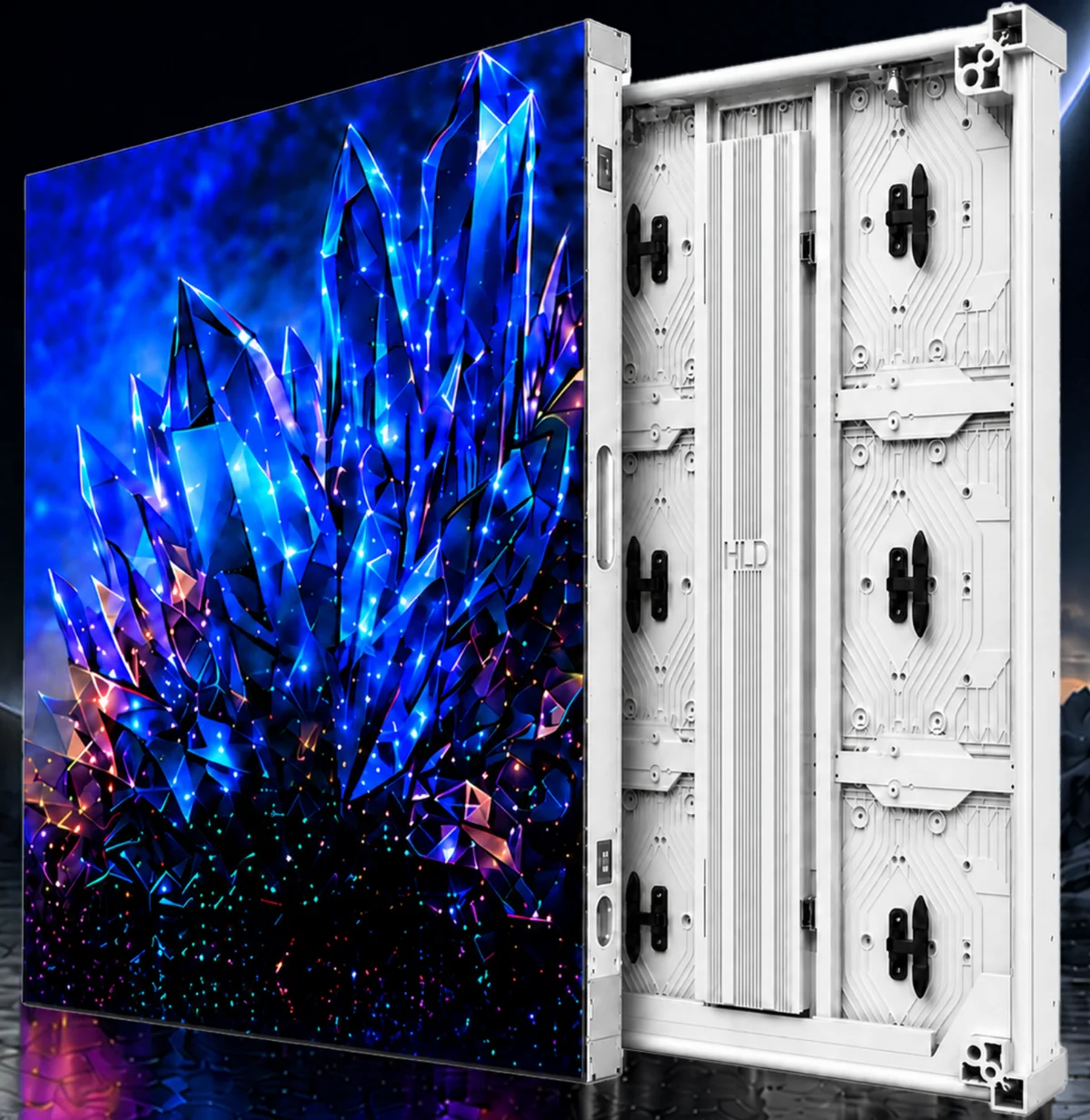

Front and rear maintenance with modular access for faster service.
- 03
Fire-retardant & waterproof
Rugged construction and IP66 protection for reliable outdoor deployment.
- 04
Delicate picture quality
Fine-pitch clarity, high contrast, smooth refresh and vivid outdoor-ready visuals.

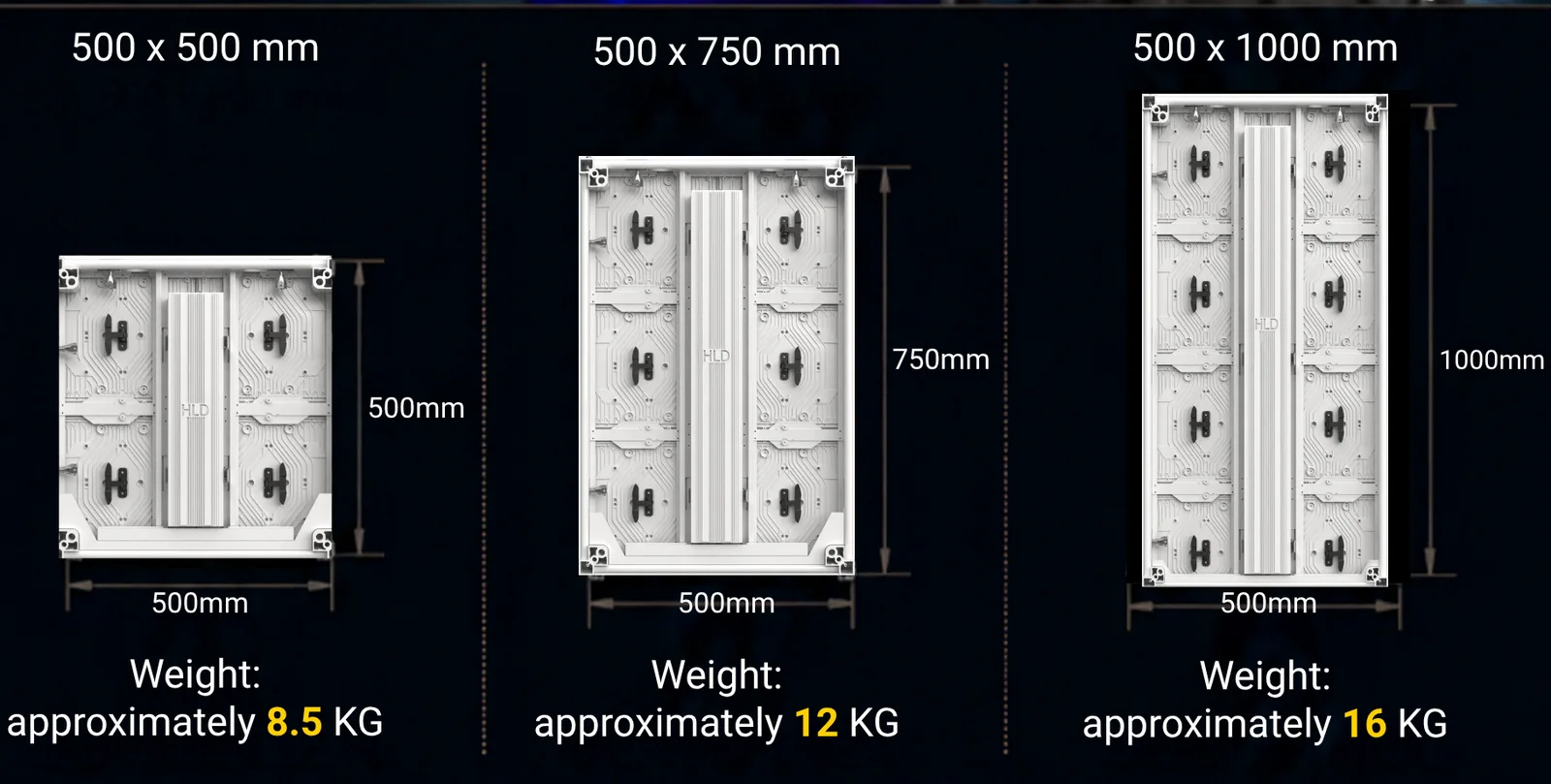

03 / FLEXIBLE INSTALLATION
Three cabinet sizes.
Corners and curves.

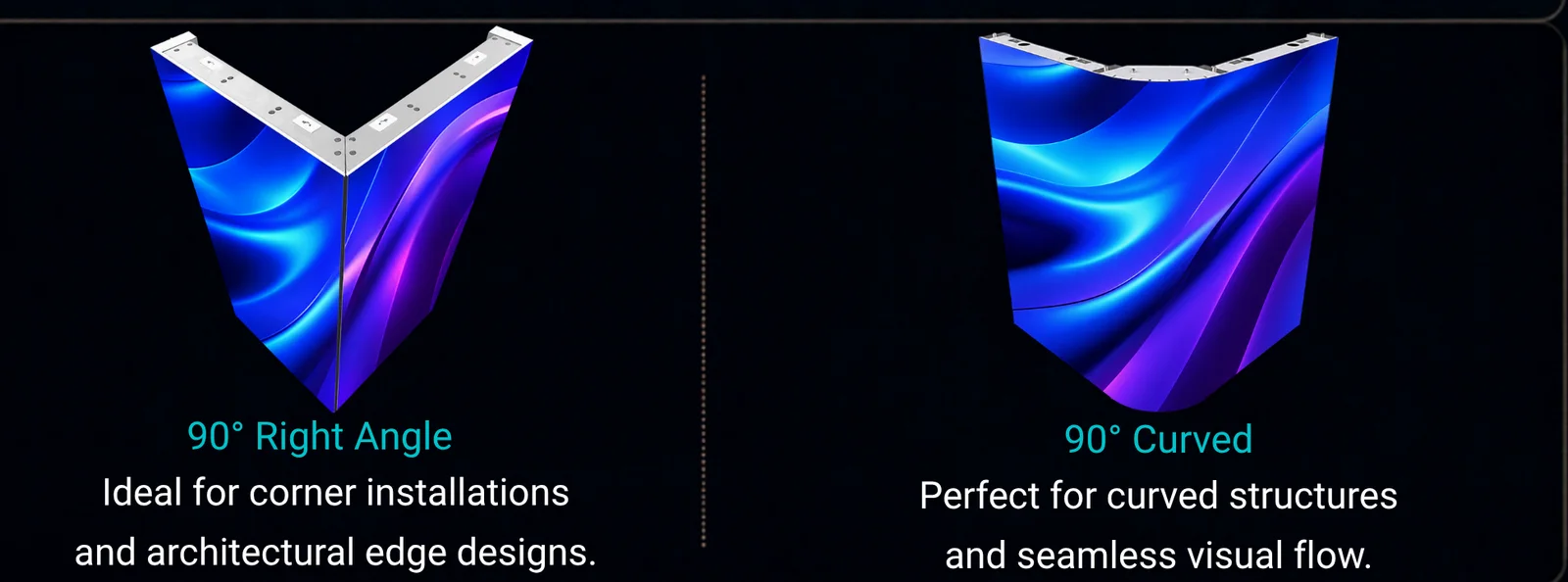

Ultra-light profile cabinets in 500 × 500, 500 × 750 and 500 × 1000 mm fit the space you have; 90° right-angle and curved builds wrap corners and edges.
04 / CHOOSE YOUR PITCH
Four pitches.
From 1.3 mm.
CA1.3 uses MIP on a 500 × 500 cabinet; CA1.95–CA2.97 use SMD1415 on 500 × 1000 cabinets.
CA1.95 / SMD1415
1.95mm
Pixel pitch / 256 × 512 pixels per cabinet · 500 × 1000 × 84 mm
PLAN A SCREEN
- Screen size
- 5 × 3 m
- Resolution
- 2,560 × 1,536 px
- Total weight
- ≈ 480 kg
- Power (avg / max)
- ≈ 2.8 / 7.5 kW
Estimates from the brochure values; excludes steel structure, control system and spares.
CA1.95 specifications.
- Encapsulation
- SMD1415
- Pixel pitch
- 1.95 mm
- Module resolution
- 128 × 128
- Cabinet resolution
- 256 × 512
- Cabinet size
- 500 × 1000 × 84 mm
- Cabinet weight
- 16 kg
- Brightness
- ≥5,000 nits
- Module size
- 250 × 250 mm
- Cabinet material
- Profile cabinet
- Color temperature
- 6,500–9,000 K optional
- Viewing angle (H/V)
- 140° / 120°
- Contrast
- 8,000:1
- Max. power*
- 500 W/m²
- Average power
- 186 W/m²
- Working voltage
- AC 100–240 V (50–60 Hz)
- Refresh rate
- 3,840 / 7,680 Hz
- Gray scale
- 14–16 bit
- Protection
- IP66
- Working humidity
- 10–90 % RH, no condensation
- Maintenance
- Front & rear maintenance
- Certification
- CCC · CE · FCC · RoHS
* Tested at 1,000 nits white balance. Values from the HLD Crystal Array brochure; final specifications are confirmed with your configuration.

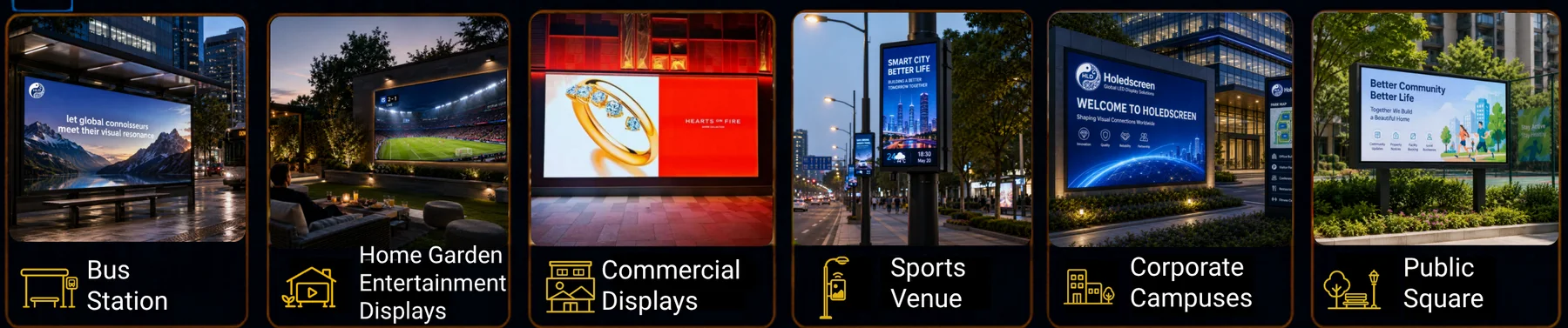

Request the full brochure ↗05 / WHERE IT FITS
Wherever people
walk past closely.
- Bus stations
- Home garden entertainment
- Commercial displays
- Sports venues
- Corporate campuses
- Public squares
ALSO OUTDOOR
Billboards seen from afar?
Choose the SA Series.
StellArray brings 8,000–10,000 nits and IP68 to P5–P10 façades and billboards.
CLOSE UP. OUT IN THE OPEN.
Let’s plan your
outdoor screen.
Share the screen size, viewing distance and site photos.
We’ll recommend the pitch, cabinet size, structure and control system.
