HLD OUTDOOR PROJECT
Naked-eye 3D corners
Building corners that turn content into a street-level spectacle.
OUTDOOR / SA SERIES · STELLARRAY
Where cityscapes
meet starlight.
High-brightness outdoor LED in a 960 mm die-cast cabinet — IP68, 16-bit and built for bare installation on façades and billboards.
960 × 960 × 100 mm10,000nitsBrightness, optional
IP68Protection
7,680HzRefresh rate, optional
01 / BUILT FOR THE OPEN AIR
960 × 960 mm.
Bare-installed.

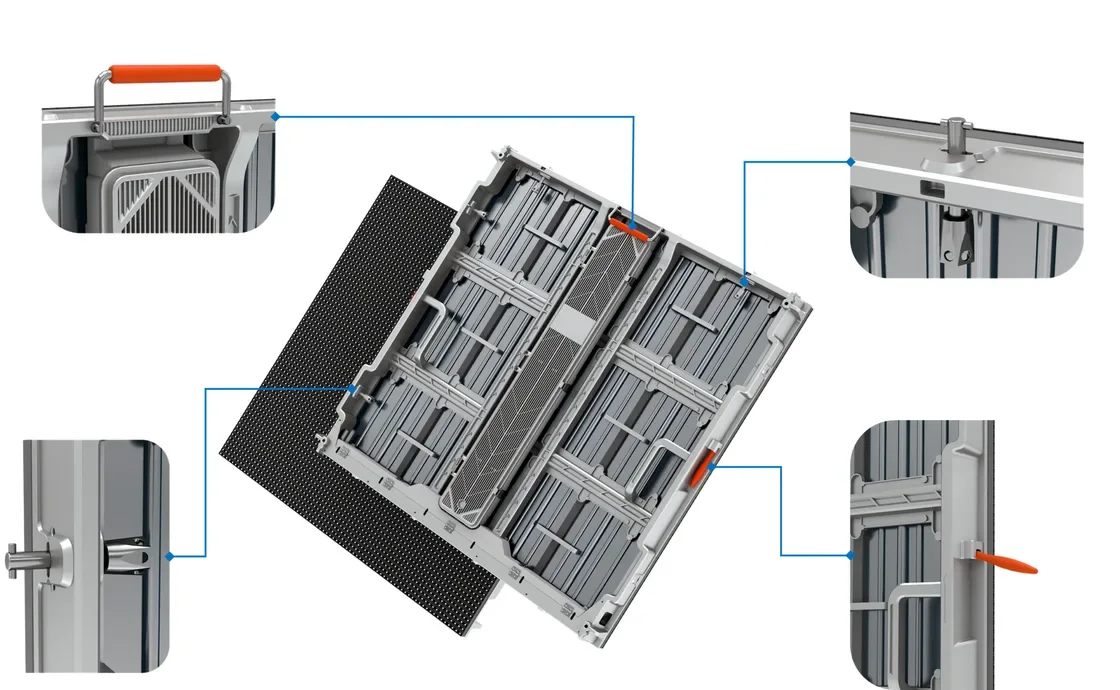

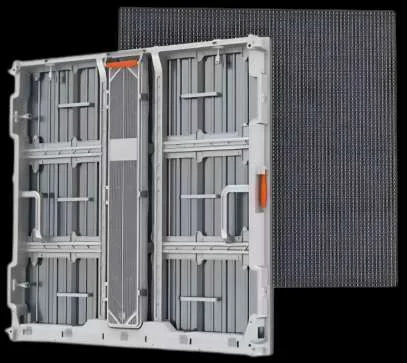

A die-cast aluminum cabinet carrying six 480 × 320 mm modules, sealed to IP68 and designed to hang on a façade without an extra enclosure.
- mm cabinet
- 960 × 960 × 100
- kg per cabinet
- 27
- mm cabinet flatness
- ≤0.4
- ℃ working range
- -20 to +60
02 / ENGINEERED FOR THE WEATHER
Bright at noon.
Steady all year.

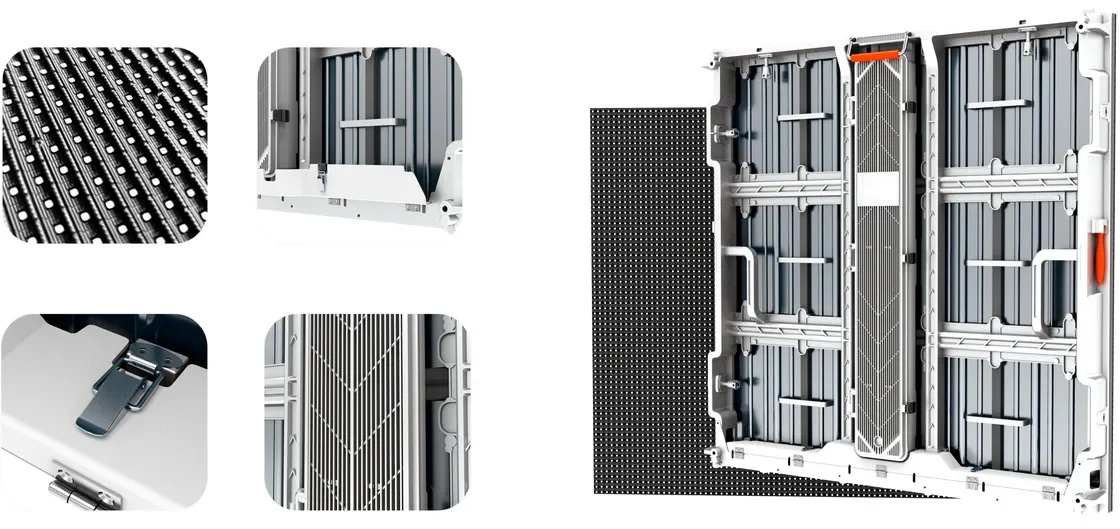

Brightness, redundancy, rear service and sealing — the four things an outdoor screen is judged on.

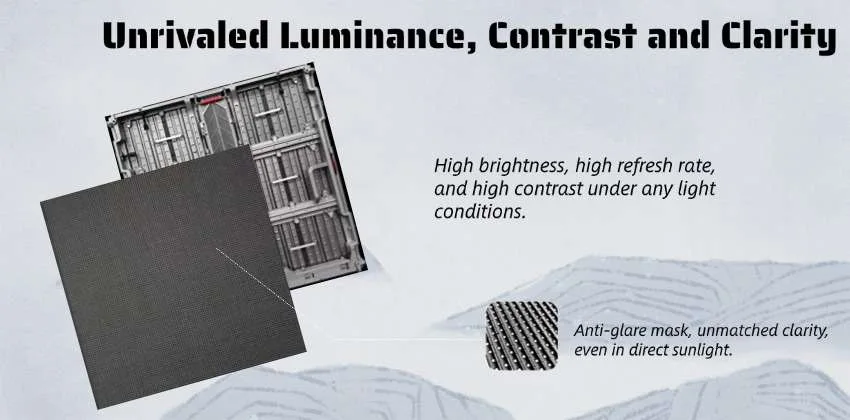

Clear in direct sunlight.
High brightness, high refresh rate and high contrast under any light, with an anti-glare mask that keeps the picture sharp at midday.
03 / BEYOND THE RECTANGLE
Corners and curves.
Naked-eye 3D ready.

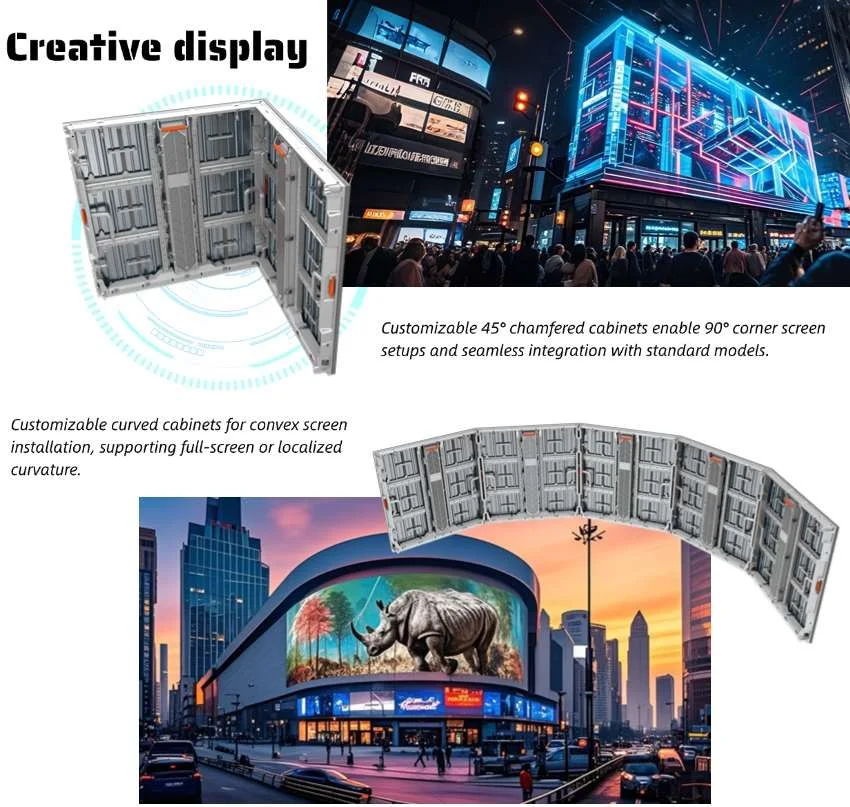

Customizable 45° chamfered cabinets build seamless 90° corner screens, and curved cabinets wrap convex façades — combined freely with standard cabinets.
See our outdoor projects ↗04 / CHOOSE YOUR PITCH
Four pitches.
Sized by distance.
From P5 for street-level façades to P10 for long-distance billboards — all on the same 960 mm cabinet.
SA5 / OUTDOOR
5mm
Pixel pitch / 192 × 192 pixels per cabinet
PLAN A SCREEN
- Wall size
- 9.6 × 5.76 m
- Resolution
- 1,920 × 1,152 px
- Total weight
- ≈ 1,620 kg
- Power (avg / max)
- ≈ 10.0 / 31.0 kW
Estimates from the brochure values; excludes steel structure, control system and spares.
SA5 specifications.
- Pixel pitch
- 5 mm
- Cabinet resolution
- 192 × 192
- Max. power*
- ≤560 W/m²
- LED
- SMD 6-pin 1921
- Cabinet size
- 960 × 960 × 100 mm
- Module size
- 480 × 320 mm
- Material
- Aluminum / die-cast aluminum
- Cabinet weight
- 27 kg
- Cabinet flatness
- ≤0.4 mm
- Brightness
- 8,000–10,000 nits (optional)
- Viewing angle (H/V)
- ≥165° / ≥145°
- Contrast
- 8,000:1
- Average power
- 180 W/m²
- Refresh rate
- 3,840 Hz / 7,680 Hz optional
- Gray scale
- 16 bit
- Frame rate
- 50 / 60 Hz
- Working voltage
- AC 100–240 V
- Working temperature
- -20 to +60 ℃
- Working humidity
- 10–90 % RH, no condensation
- Maintenance
- Rear maintenance
- Protection
- IP68
- Certification
- RoHS · CE · FCC · CCC
* Tested at 1,000 nits white balance. Values from the HLD StellArray brochure; final specifications are confirmed with your configuration.
Request the full brochure ↗05 / WHERE IT SHINES
Façades, billboards.
City landmarks.
HLD OUTDOOR PROJECT
Curved façades & DOOH
Large-format advertising that follows the architecture.
Photos from HLD outdoor projects show typical applications; ask us which series was used in each installation.
ALSO OUTDOOR
Viewers closer than 5 m?
Choose CA fine-pitch outdoor.
CrystalArray brings P1.3–P2.97 to outdoor screens that are seen up close.
YOUR CITY. YOUR SCREEN.
Let’s light up
your façade.
Share the screen size, viewing distance and site photos.
We’ll recommend the pitch, cabinet layout, structure and control system.
