APPLICATION

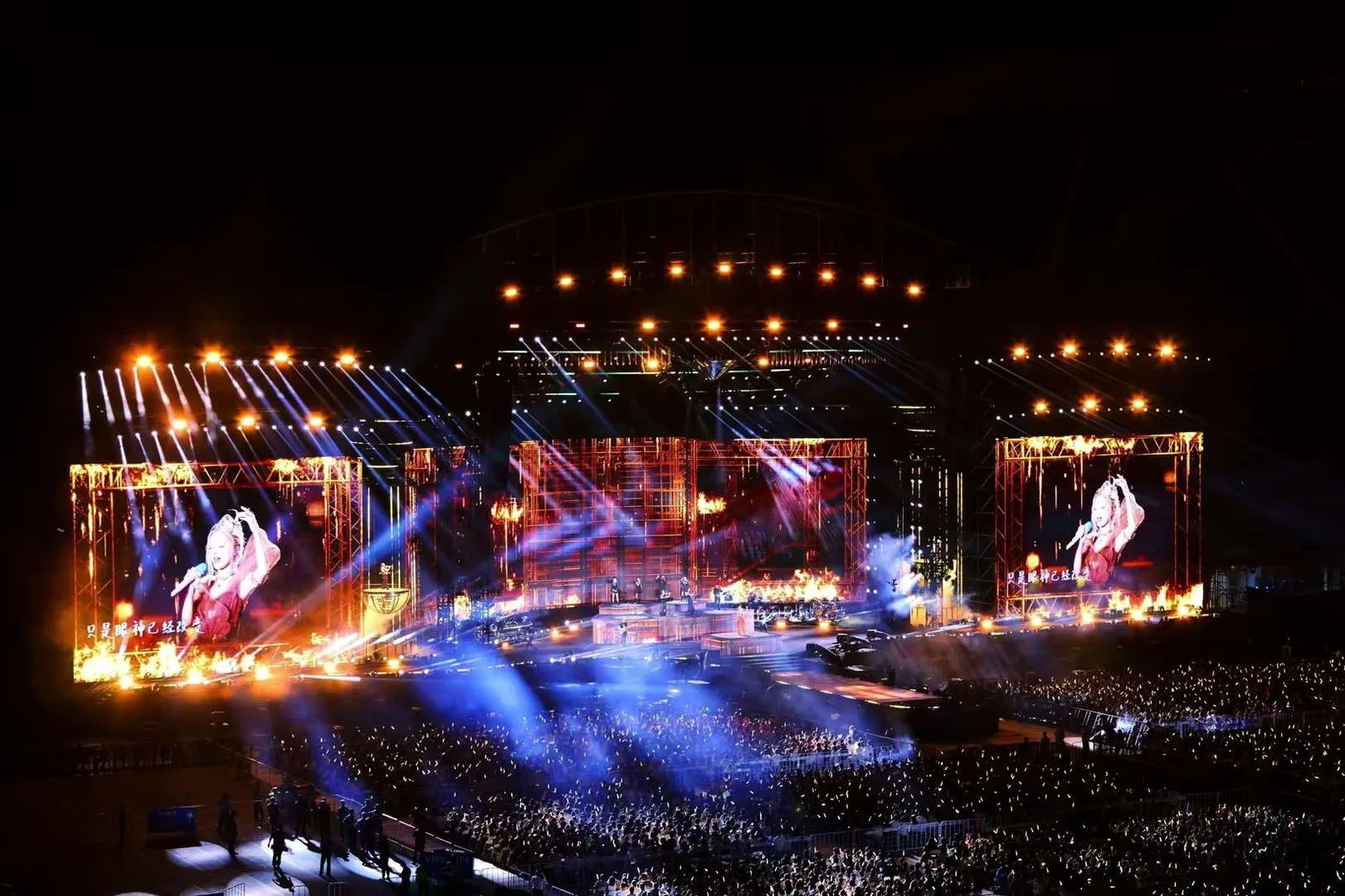

Concerts & live events
Large stage walls, side screens and curved backdrops.
INKSCAPE™ / COB RENTAL PRO · CLOUDPOLAR COB
Superlative COB.
Preeminent on stage.
Built for the high-end rental market — high reliability, real durability and superb image quality for large stages, premium conferences and TV production.
0.976mmFinest pixel pitch
6.9kgFrom, per cabinet
7,680HzRefresh rate, up to
01 / BUILT TO TRAVEL
One 500 mm cabinet.
Every show.

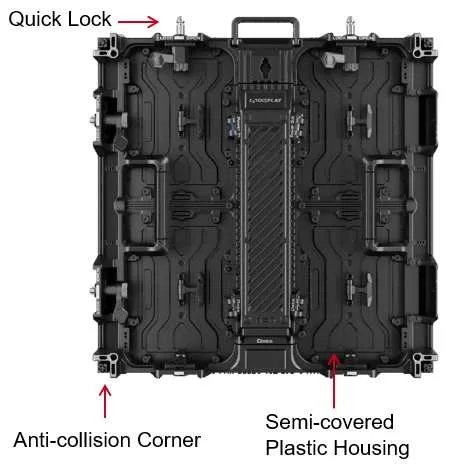

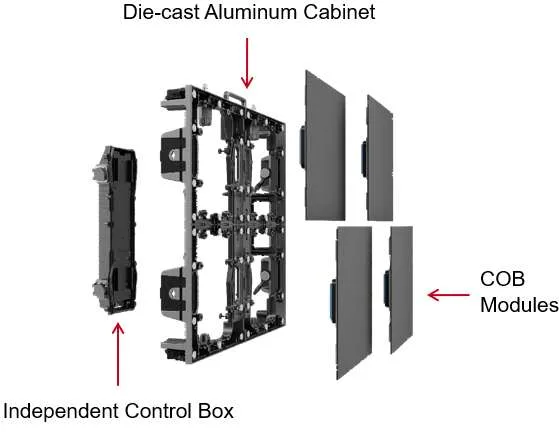

A die-cast aluminum cabinet with a separate control box, quick locks and anti-collision corners — slim, light and rigid, with excellent heat dissipation and fast assembly.
- mm cabinet
- 500 × 500 × 67
- mm COB module
- 250 × 250
- kg per cabinet
- 6.9 / 7.1
- front maintenance
- 100%
02 / CREATIVE BY DESIGN
Curves, corners.
Any stage you draw.

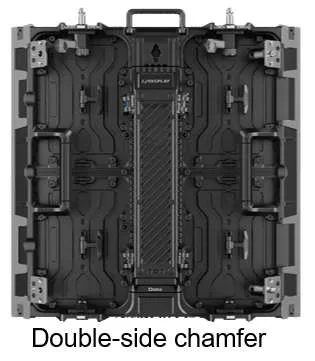

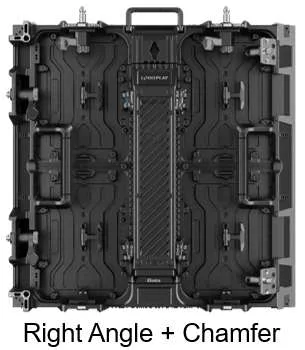

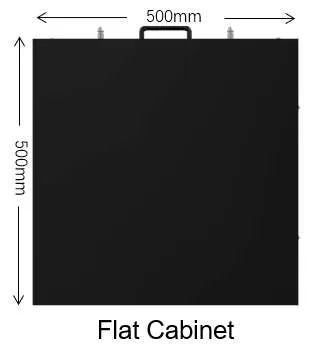

Flat, right-angle and double-chamfer cabinets combine for ±5° inner and outer arcs, corner wraps and floor-to-truss builds.

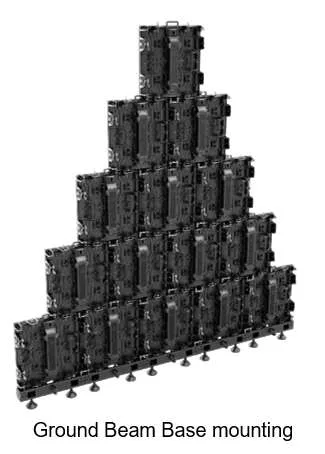

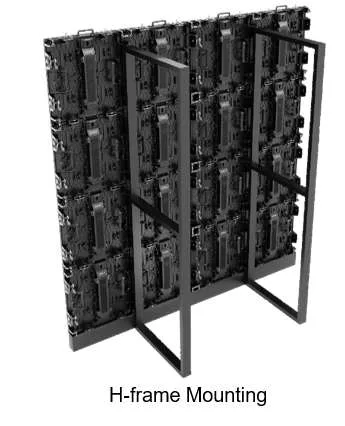

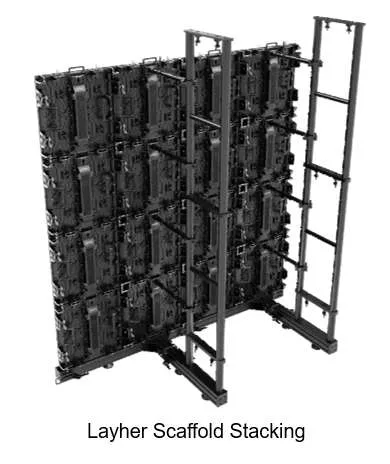

INSTALLATION

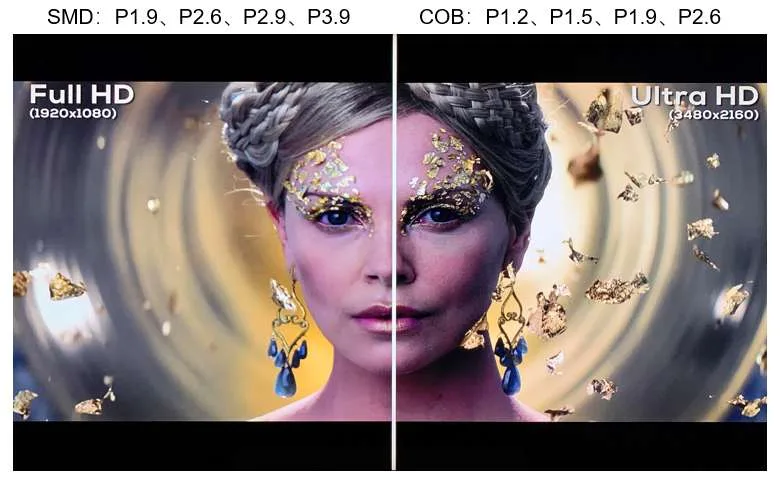

03 / WHY COB
Same cabinet.
A better picture.
The platform comes in COB and SMD versions. Here is what COB changes, side by side.
COBP1.2 · P1.5 · P1.9 · P2.6
SMDP1.9 · P2.6 · P2.9 · P3.9
COB takes the same rental cabinet down to 0.976 mm, so a stage wall reads as Ultra HD from the front rows.
04 / CHOOSE YOUR PITCH
Nine models.
One rental platform.
Pick COB for close viewing and camera work, or SMD for larger pitches and budget-led tours — all on the same 500 mm cabinet.
CP15C / COB
1.56mm
Pixel pitch · 320 × 320 pixels per cabinet
10,000:1Contrast ratio
14–16 bitGray scale
200 W/m²Average power
PLAN A WALL
- Cabinets
- 12 × 7 = 84
- Resolution
- 3,840 × 2,240 px
- Total weight
- ≈ 596 kg
- Power (avg / peak)
- ≈ 4.2 / 10.5 kW
Estimates from the brochure values; excludes rigging, processors and spares.
CP15C specifications.
- Pixel pitch
- 1.56 mm
- Module resolution
- 160 × 160
- Cabinet resolution
- 320 × 320
- Pixel density
- 409,600 dots/m²
- Cabinet weight
- 7.1 kg
- Cabinet flatness
- ≤0.1 mm
- Brightness
- 0–1,000 nits
- Viewing angle (H/V)
- 170° / 170°
- Contrast
- 10,000:1
- Peak / average power
- 500 / 200 W/m²
- Gray scale
- 14–16 bit
Values from the HLD CloudPolar COB rental brochure. Final specifications are confirmed with your configuration.
Request the full brochure ↗SHARED BY EVERY MODEL
- Cabinet size
- 500 × 500 × 67 mm
- Module size
- 250 × 250 mm · 2 × 2 per cabinet
- Refresh rate
- 3,840–7,680 Hz
- Frame rate
- 50 / 60 Hz
- Color temperature
- 2,000–12,000 K adjustable
- Power supply
- AC 100–240 V (50–60 Hz)
- Operating temperature
- -10 to +45 ℃
- Operating humidity
- 10–80 % RH, non-condensing
- Service life
- 100,000 h
- Maintenance
- Full front maintenance
- Protection
- IP41 complete unit
05 / WHERE IT PERFORMS
From the arena.
To the launch stage.
APPLICATION

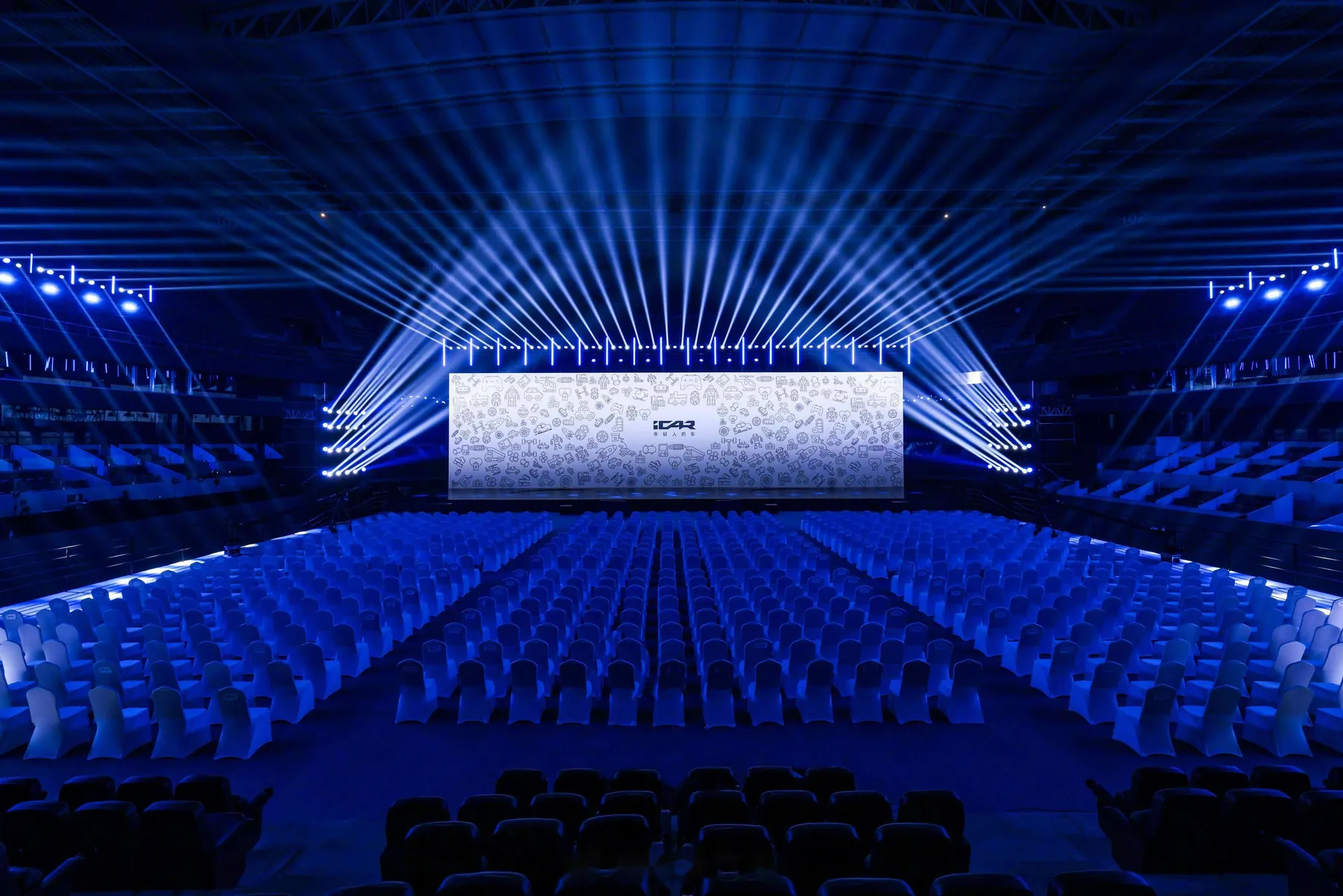

Summits & product launches
Premium conference stages and TV production sets.
EXPLORE THE INKSCAPE FAMILY
Permanent install?
Choose a fixed COB series.
COB Pro and IS COB bring the same flip-chip COB image to control rooms and boardrooms.
YOUR TOUR. YOUR STAGE.
Let’s spec your
next show.
Share the stage size, viewing distance and how often the wall travels.
We’ll recommend the model, cabinet count, flight cases and spares.
