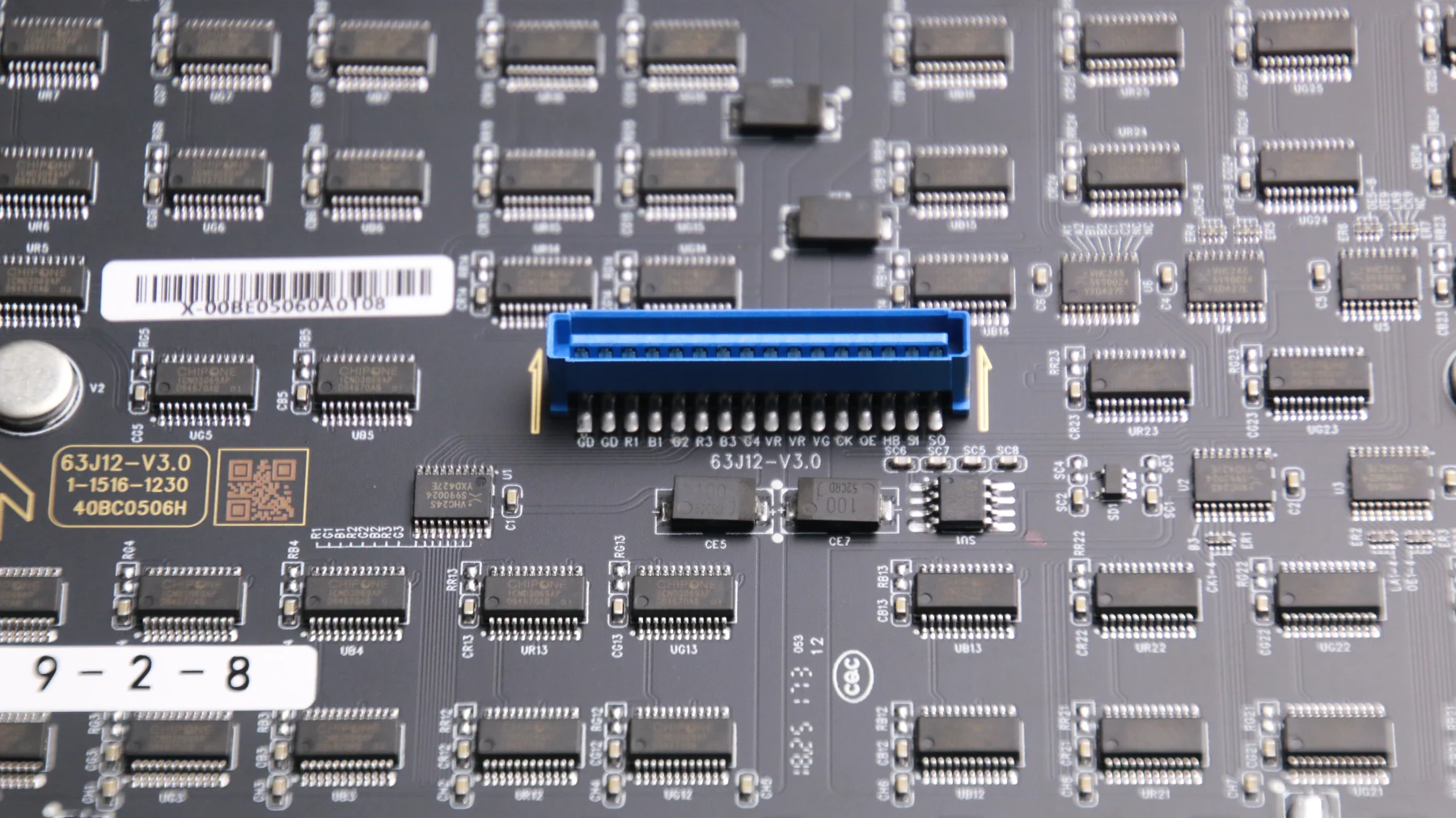

PRODUCT DETAIL / 01Hardwired connections
Dedicated power adapter board and direct connections.
INKSCAPE™ / COB-PRO SERIES
Precision you see.
Engineering you trust.
Full flip-chip COB. Extraordinary detail, in just 28mm.
600 × 337.5 × 28 mm01 / BEYOND THE SURFACE
A clear picture.
Inside and out.
Explore the display surface, internal architecture and cabinet profile using the actual product renders.

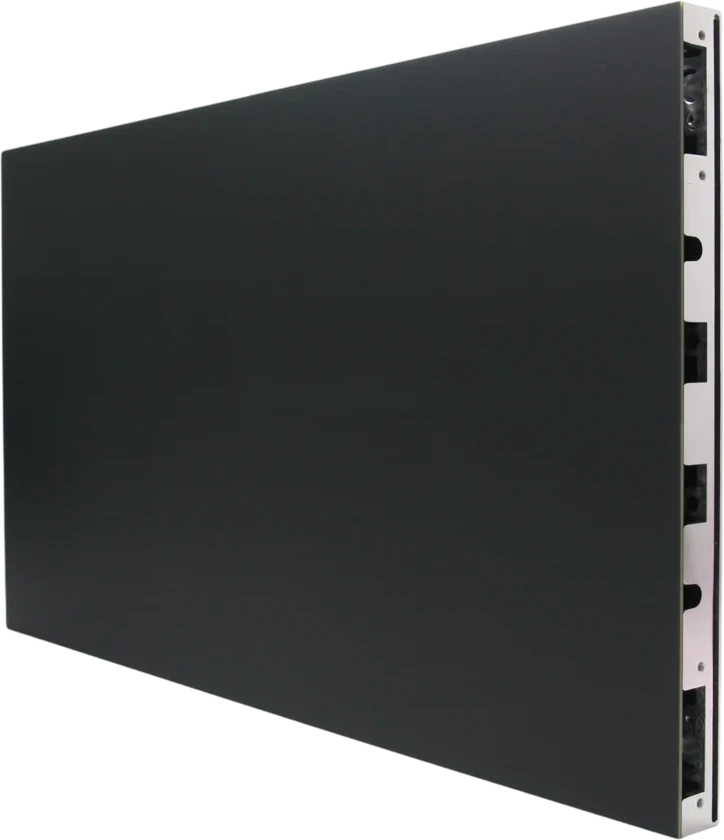

Full flip-chip. Fine detail.
COB technology with a 10,000:1 contrast ratio and 16bit gray scale, as specified in the HLD brochure.
02 / THE DETAILS MATTER
Real hardware.
Considered connections.
PRODUCT DETAIL / 01

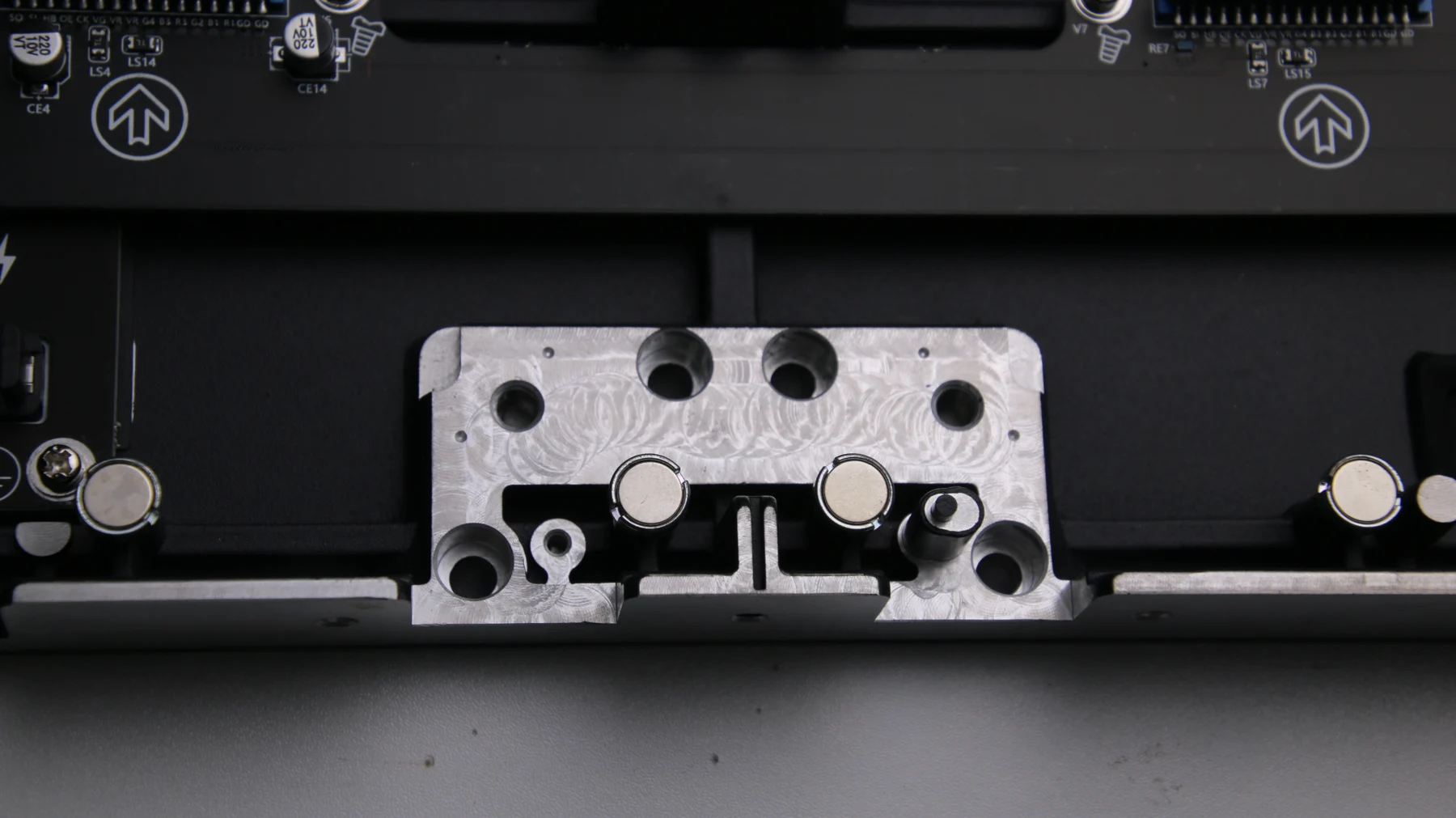

PRODUCT DETAIL / 02Precision joining
CNC-milled joining tabs and cabinet interfaces.

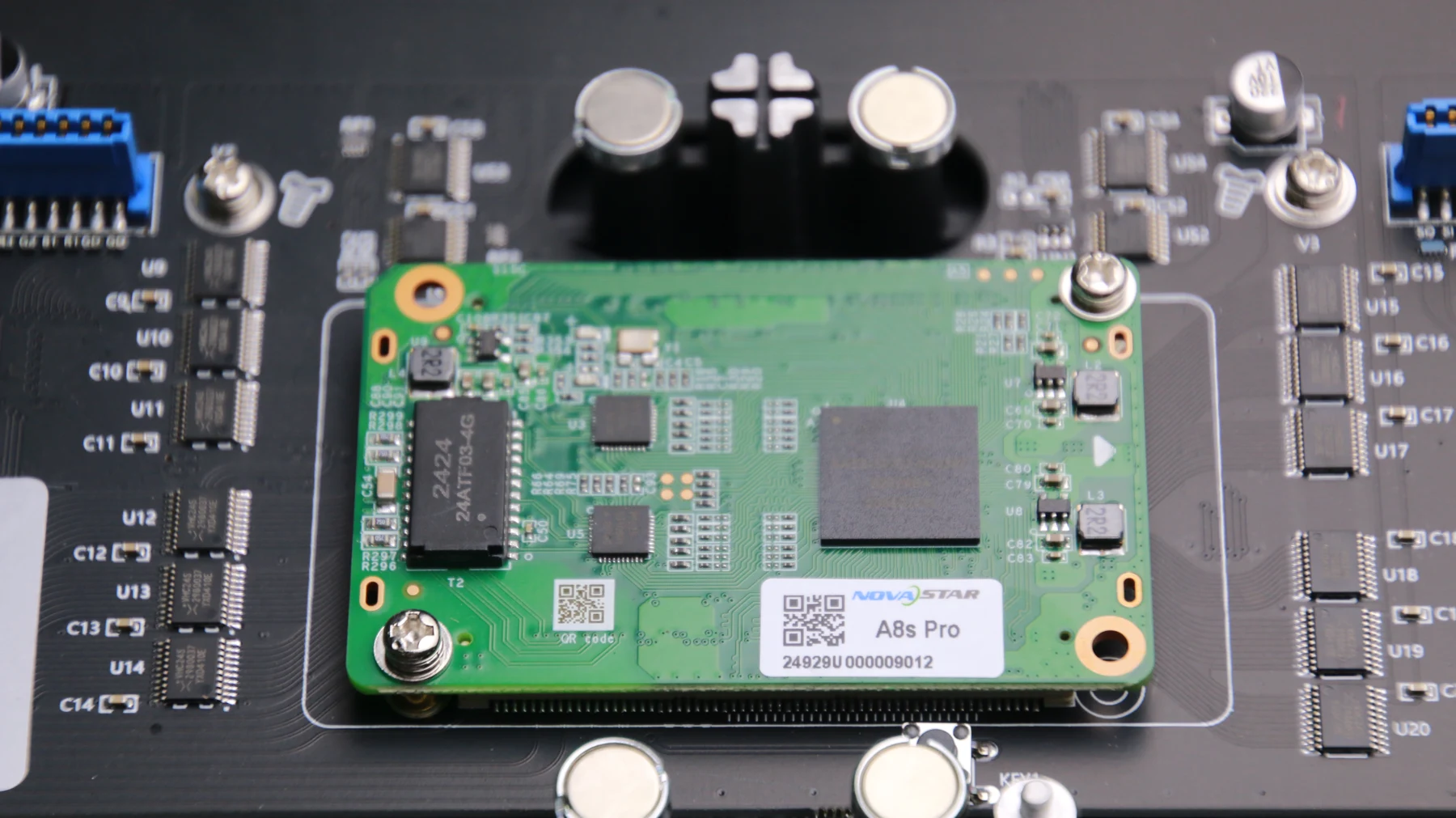

PRODUCT DETAIL / 03Accessible architecture
Front maintenance with an integrated internal layout.
03 / CHOOSE YOUR DETAIL
Five pitches.
One Pro platform.
Select a model to explore cabinet resolution, power requirements and an example native 4K wall.
IS006 / NATIVE 4K EXAMPLE
4K3840 × 2160
2.4 × 1.35 m4 × 4 cabinets
960 × 540Cabinet resolution
280 W/m²Average power consumption
IS006 specifications.
- Pixel pitch
- 0.625 mm
- Cabinet size
- 600 × 337.5 × 28 mm
- Cabinet weight
- 4.7 kg
- Brightness
- 0–1,000 nits · adjustable
- Refresh rate
- 3,840 Hz
- Gray scale
- 16 bit
- Contrast
- 10,000:1
- Viewing angle (H/V)
- 170° / 170°
- Max. power*
- ≤700 W/m²
- Protection
- IP41
- Maintenance
- Front maintenance
* Maximum power measured at 1,000 nits white balance. Values follow the supplied HLD COB-Pro brochure; confirm the final configuration with HLD. 4K dimensions exclude frame and trim.
Request the complete specifications ↗EXPLORE THE INKSCAPE FAMILY
Different projects.
Different priorities.
Compare with the IS COB Series to discuss the cabinet design and configuration that suit your installation.
MAKE THE NEXT PICTURE YOURS
Your vision.
Pro-level detail.
Share your screen dimensions, viewing distance and installation plan.
We’ll help configure your COB-Pro display.
