INDOOR / LS SERIES · LUCIDSIGHT

Beyond clarity.
To lucidity.

Fine-pitch SMD and MIP in a 29 mm, 16:9 die-cast cabinet — for meeting rooms, control rooms and commercial display.

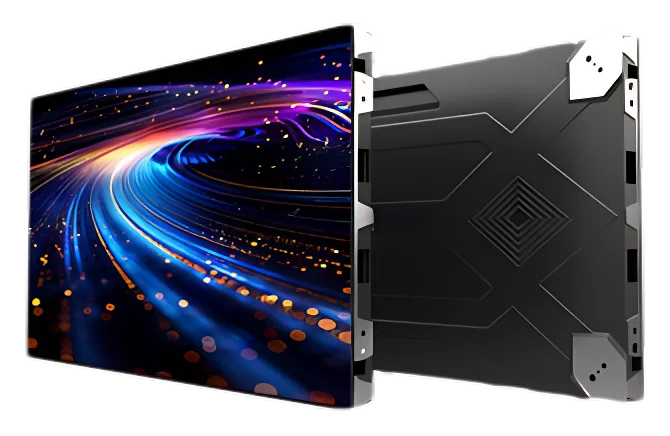

LucidSight LS Series cabinet, front and rear

600 × 337.5 × 29 mm / 16:9

29mmCabinet depth

4.2kgCabinet weight

3,840HzRefresh rate

Configure your display ↗

01 / SLIM BY DESIGN

29 mm thin.
4.2 kg light.

The whole series shares one die-cast aluminum cabinet — 600 × 337.5 mm in a 16:9 ratio, flat to within 0.1 mm, so walls go up straight and stay seamless.

mm · 16:9 cabinet: 600 × 337.5
mm cabinet flatness: ≤0.1
brightness uniformity: ≥98%
maintenance: Front

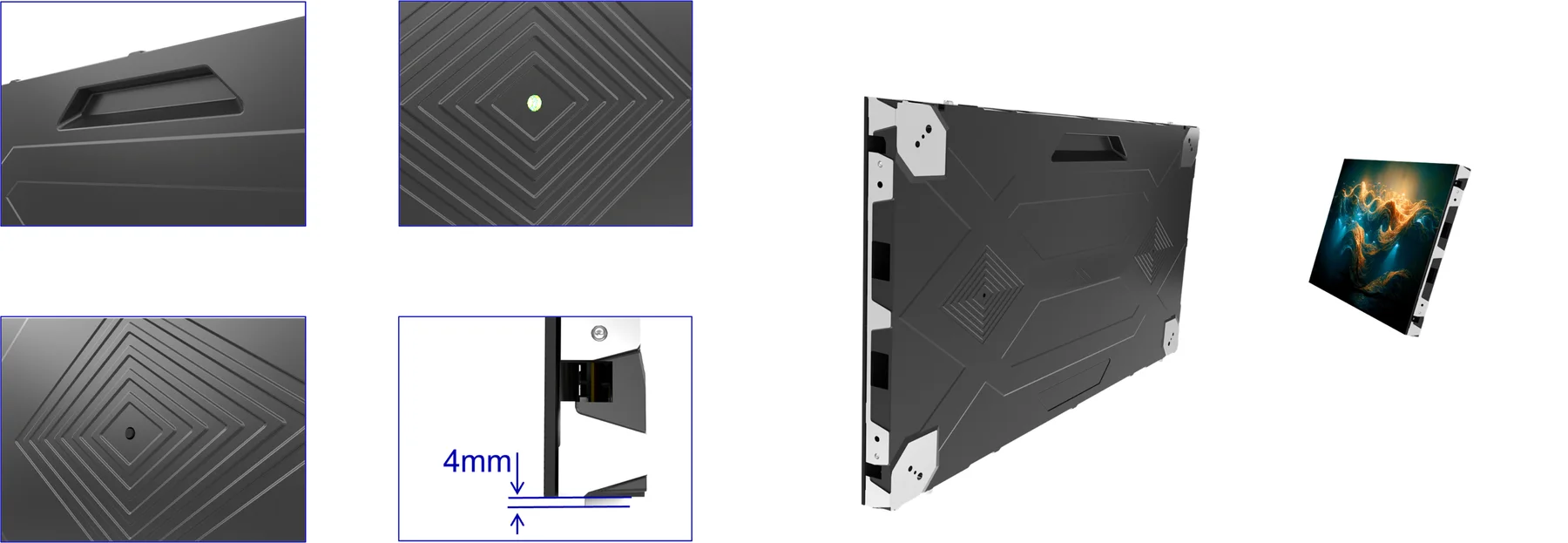

LS Series cabinet details: handle, rear texture, status light and 4 mm module seam — Cabinet details · rear texture · 4 mm seam

02 / ENGINEERED FOR UPTIME

Built to stay on.
Easy to look after.

Smart modules, redundant power and a hard-wired die-cast cabinet — the details that keep a meeting room or control room running.

Swap a module. Keep the calibration.

Every module stores its own calibration data, so modules are interchangeable anywhere on the wall and read their data automatically.

03 / THE PICTURE

500 nits. 3,840 Hz.
14-bit gray.

Wide ≥170° viewing angles and a 5,000:1 contrast ratio, tuned for comfortable indoor viewing and clean on-camera images.

LS Series display performance: 500 nits, 3840 Hz, 14 bit

04 / FIND YOUR PITCH

Five pitches.
One 16:9 cabinet.

Choose by viewing distance. Every model builds native Full HD and 4K walls without cropping.

LS1.2 / NATIVE 4K EXAMPLE

1.25mm

Pixel pitch / 480 × 270 pixels per cabinet · SMD1010

4K3840 × 2160

4.8 × 2.7 m8 × 8 cabinets / native 4K example

Discuss LS1.2 ↗

LS1.2 specifications.

LED: SMD1010
Pixel pitch: 1.25 mm
Cabinet resolution: 480 × 270
Module size: 300 × 337.5 mm
Max. power*: ≤395 W/m²
Average power: ≤110 W/m²
Cabinet size: 600 × 337.5 × 29 mm
Material: Die-cast aluminum
Cabinet weight: 4.2 ± 0.05 kg
Cabinet flatness: ≤0.1 mm
Brightness: 500 nits (adjustable)
Brightness uniformity: ≥98%
Viewing angle (H/V): ≥170° / ≥170°
Contrast: 5,000:1
Refresh rate: 3,840 Hz
Gray scale: 14 bit
Frame rate: 50 / 60 Hz
Working voltage: AC 100–240 V (50–60 Hz)
Working temperature: -10 to +40 ℃
Working humidity: 10–60 % RH, no condensation
Maintenance: Front maintenance
Protection: IP30
Certification: CCC · CE · FCC · RoHS

* Tested at 500 nits white balance. Values from the HLD LucidSight SMD brochure; final specifications are confirmed with your configuration. 4K wall sizes exclude frame and trim.

Request the full brochure ↗

05 / WHERE IT FITS

Wherever people
look closely.

A 16:9 picture for presentations, dashboards and brand content.

Meeting room
Command center
Commercial display
Digital exhibition
Government agency
Smart campus

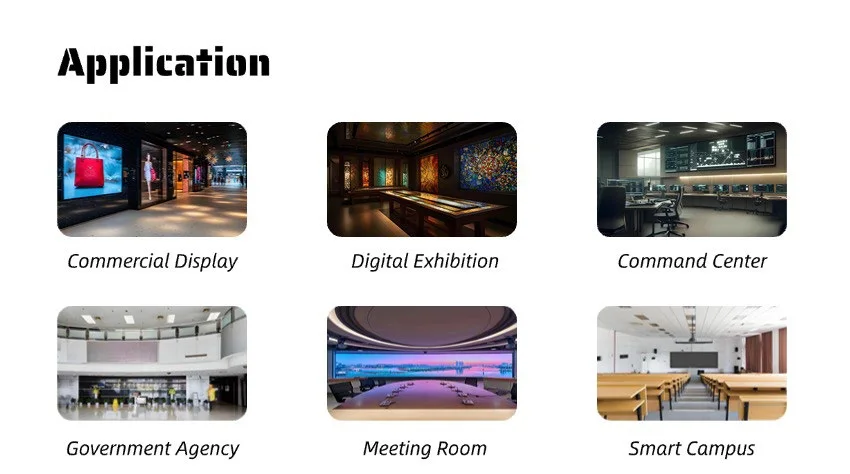

LS Series applications: commercial display, digital exhibition, command center, government agency, meeting room, smart campus — Application references

ALSO IN LUCIDSIGHT

Need an even deeper black?
Meet LucidSight MIP.

Flip-chip MIP with GOB protection on the same 600 × 337.5 mm platform, from 0.78 mm.

Explore LucidSight MIP ↗

YOUR ROOM. YOUR PICTURE.

Let’s size your
LS wall.

Share the room size, viewing distance and content.
We’ll recommend the pitch, cabinet layout and control system.

Start your project ↗Request the brochure ↗
