LucidSight MIP Micro LED Series
Beyond Clarity, To Lucidity
Model
- Pixel Pitch (mm)
- 0.78
- Cabinet Size (mm)
- 600*337.5
- Brightness
- 1000cd/m² (Adjustable)
- Refresh Rate
- 3840Hz
01 / 08Overview
Beyond Clarity, To Lucidity

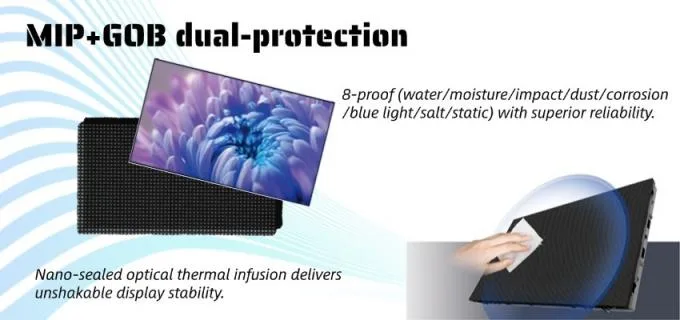

Nano-sealed optical thermal infusion delivers unshakable display stability.
MIP+GOB Dual Enhancement: Pursuing high brightness while skillfully minimizing luminance loss, maintaining ultra-clear and exceptional visual effects.

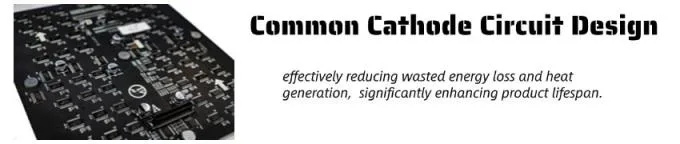

Effectively reducing wasted energy loss and heat generation, significantly enhancing product lifespan.
Ultra-Wide Viewing Angle:For clear, soft visuals and significantly enhanced visibility

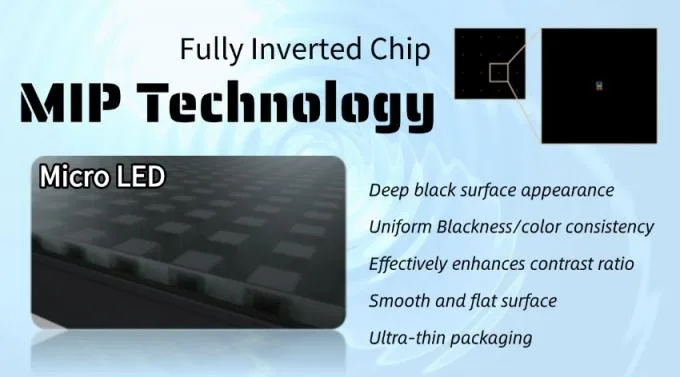

- 01Fully Inverted Chip MIP Technology
- 02Deep black surface appearance
- 03Uniform Blackness/color consistency
- 04Effectively enhances contrast ratio
- 05Smooth and flat surface
- 06Ultra-thin packaging
In detail
Every detail. Built in.
Structure, features and applications of the LucidSight MIP Micro LED Series, as engineered by our R&D team.
Specifications
The numbers. Model by model.
Display performance
LSM0.78- Encapsulation
- MIP+GOB
- Pixel Pitch (mm)
- 0.78
- Cabinet Resolution (W×H)
- 768*432
- Brightness
- 1000cd/m² (Adjustable)
- Viewing Angle (H/V)
- ≥170°/≥160°
- Brightness Uniformity
- ≥97%
- Contrast
- 20000:1
- Frame Rate
- 50/60Hz
- Refresh Rate
- 3840Hz
- Gray Scale
- 16bit

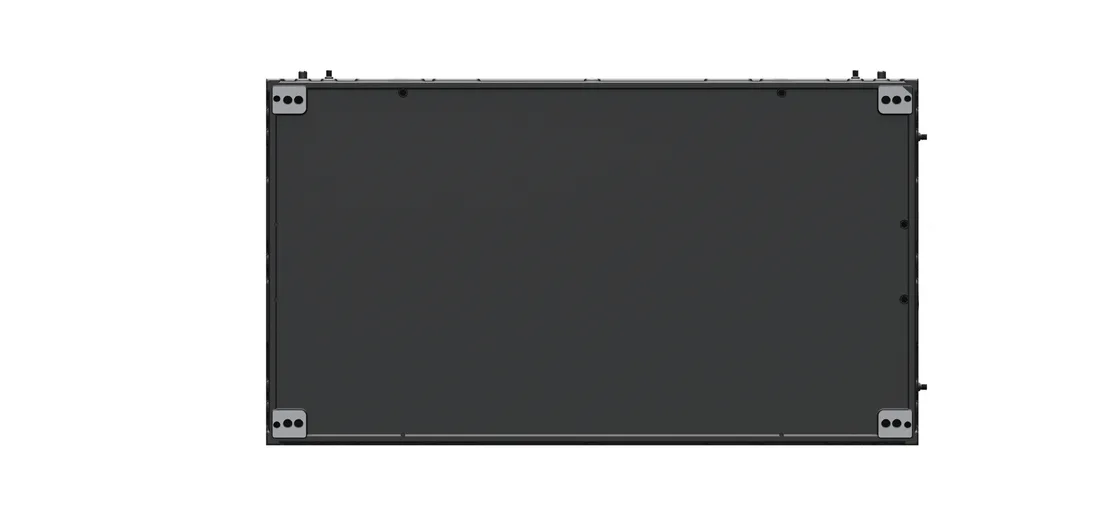

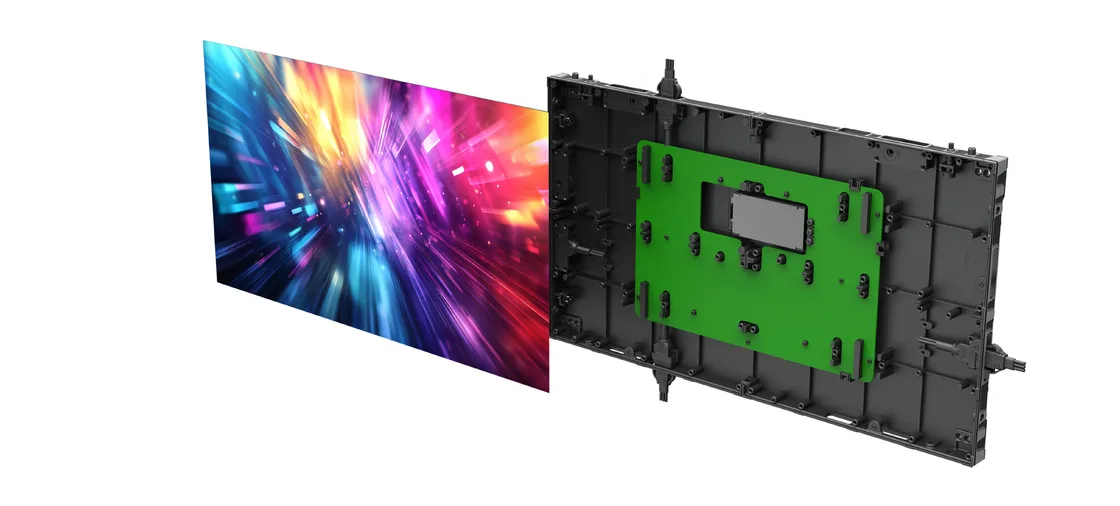

Structure & build

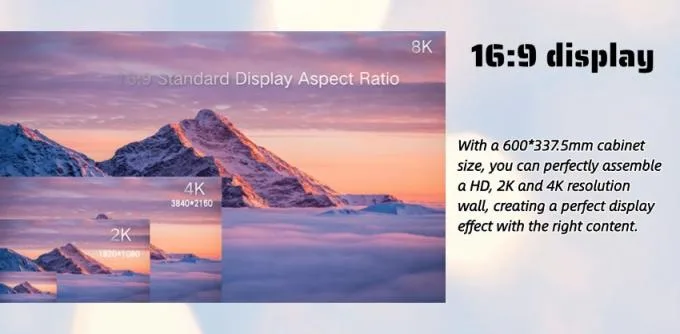

LSM0.78- Cabinet Size (mm)
- 600*337.5
- Module Size (mm)
- 300*168.75
- Material
- Die-cast aluminum
- Cabinet Weight (kg)
- 6.5±0.1
- Cabinet Flatness
- ≤0.1mm
Power
LSM0.78- Max Power Consumption (Tested at 500 nits white balance)
- ≤300W/m²
- Average Power Consumption
- ≤ 60W/m²
- Working Voltage (V)
- AC100~240V (50~60Hz)
Operation & certification
LSM0.78- Working Temperature
- -10 ℃ ~+40 ℃
- Working Humidity
- 10%~85%RH (No condensation)

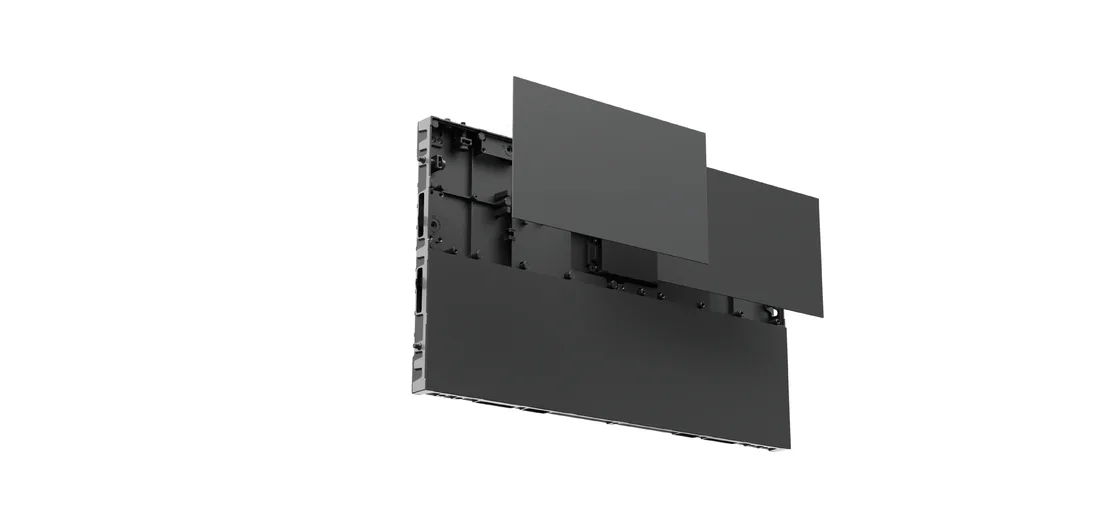

- Maintenance
- Front Maintenance
- Protection
- IP65
- Certification
- CCC, CE, FCC, RoHS
Specifications depend on the confirmed configuration. Request the full datasheet →
