Holographic Invisible LED Display
SculptStone Holographic Ultralam Series
Invisible when off. Images that float when on
Model
- Pixel Pitch (mm)(horizontal/vertical)
- 3.91-3.91
- Transparency Rate
- 92%
01 / 05Overview

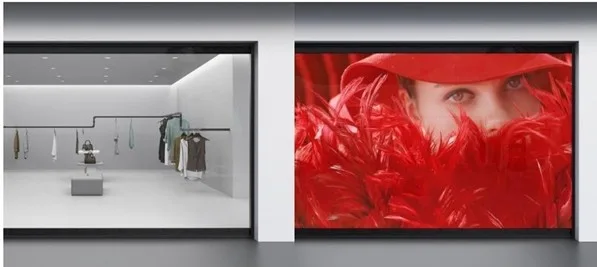

Invisible when off. Images that float when on
The screen is as transparent as nothing when turned off, with sensory transparency exceeding 90%.
It maximizes spatial lighting and visibility, achieving perfect coexistence of display and environment.

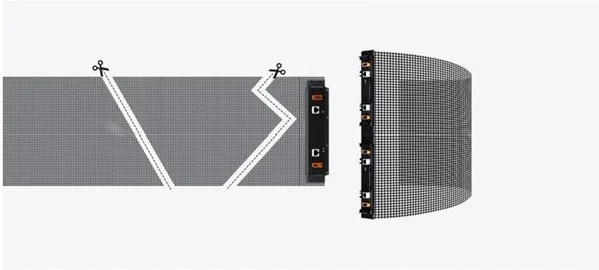

The innovative display panel enables large-size, seamless and structure-free splicing, with the screen's
transparent ratio over 90%. Images appear to float in the air, breaking the boundary between reality and digital.
In detail
Every detail. Built in.
Structure, features and applications of the SculptStone Holographic Ultralam Series, as engineered by our R&D team.
Specifications
The numbers. Model by model.
Display performance
U3- LED Specification
- 2121
- Pixel Pitch (mm)(horizontal/vertical)
- 3.91-3.91
- Pixel Density(dot/m²)
- 65536
- Transparency Rate
- 92%
- Resolution (dot)(w * h)
- Module Non-Coplanarity Module Coplanar ity 64*256/64*307/64*384 64*244/64*295/64*372
- Brightness(cd/m²)
- ≥3000(Black Body)≥4000(White Body), Module Size≤12 00mm ≥2000(Black Body)≥3000(White Body), Module Size≤15 00mm
- Calibration Parameters
- Module/Recelver Card Flash Calibration Stora ge
- Color Temperature(K)
- 6500
- Scanning Mode
- Light & Driver Integrated Static Driving
- Frame Rate(Hz)
- 60~120
- Pixel Configuration
- 16bit
- Recelving Card
- B7S/N6S Supports Direct Replacement of the Rece iving Card
- Protetion Degree
- IP20
Structure & build

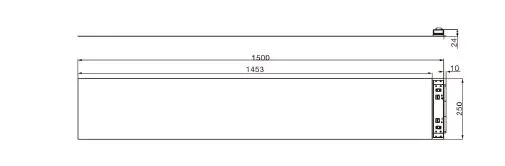

U3- Profile Dimension(mm)(w * h)
- 250*1000/250*1199/2 50*1500
- Display Dimension(mm)(w * h)
- Module Non-Coplanarity Module Coplanarity 250*1000/250*1199/250*1500 250*953/250*1152/250*1453

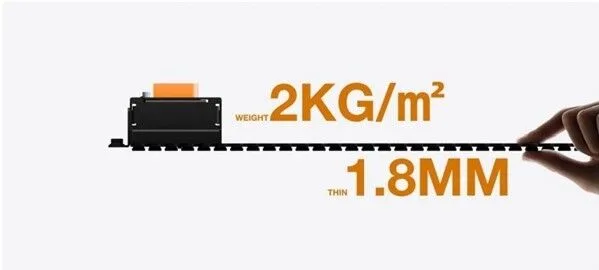

- Weight (Kg/set)
- 1.5KG(1000*1000V/1.6KG(1000*1199/1.7 KG(1000*1500)
- Packing Way
- Pearl Cotton+Wooden Box/Flight C ase
Power
U3- Maximum Power Consumption (w/m)
- 560
- Average Power Consumption (w/m)
- 232
- Input Voltage
- AC100~240V50/60 Hz
- Power Supply
- Chenlian CL-PAS6-30 0-4.2
Operation & certification
U3- Lifespan
- ≥100,000.00 hours
- Working Temperature
- Temperature-20-50 ℃
- Working Humidity
- Humidity:20%-85%(Without Condens ation)
- Storage Temperature
- Temperature-20 ℃ ~60 ℃
- Storage Humidity
- Humidity:10%-85%(Without Condens ation)
- Installation Method
- Hanging Up, Fixed Mounting, PCB Side Gl ued
- Instllation Environment
- Indoor
Specifications depend on the confirmed configuration. Request the full datasheet →
