Holographic Invisible LED Display
SculptStone Holographic Poster Series
Pixels Unframed, Universe Unveiled
Model
- Pixel Pitch (mm) (horizontal/vertical)
- 2.5-2.5
- Transparency Rate
- 85%
- Protection Degree
- IP20
01 / 09Overview
Pixels Unframed, Universe Unveiled

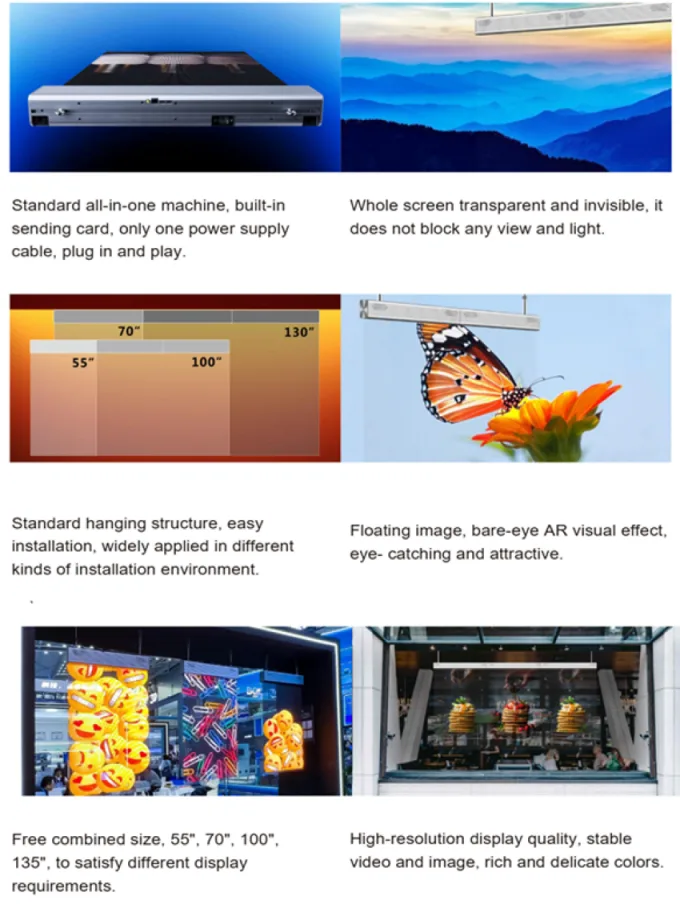

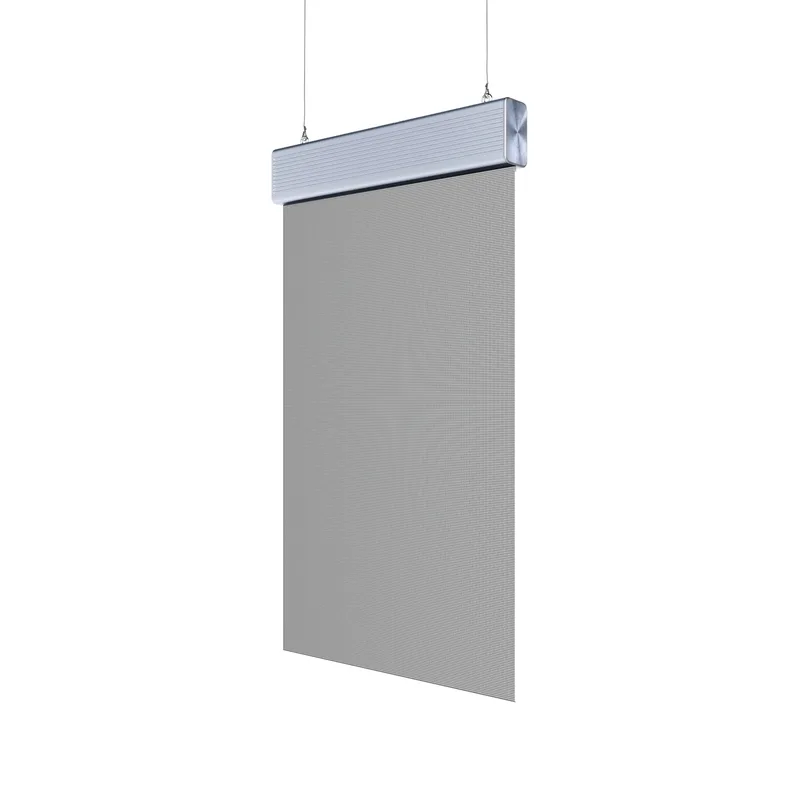

Standard all-in-one machine, built-in sending card, only one power supply cable, plug in and play.

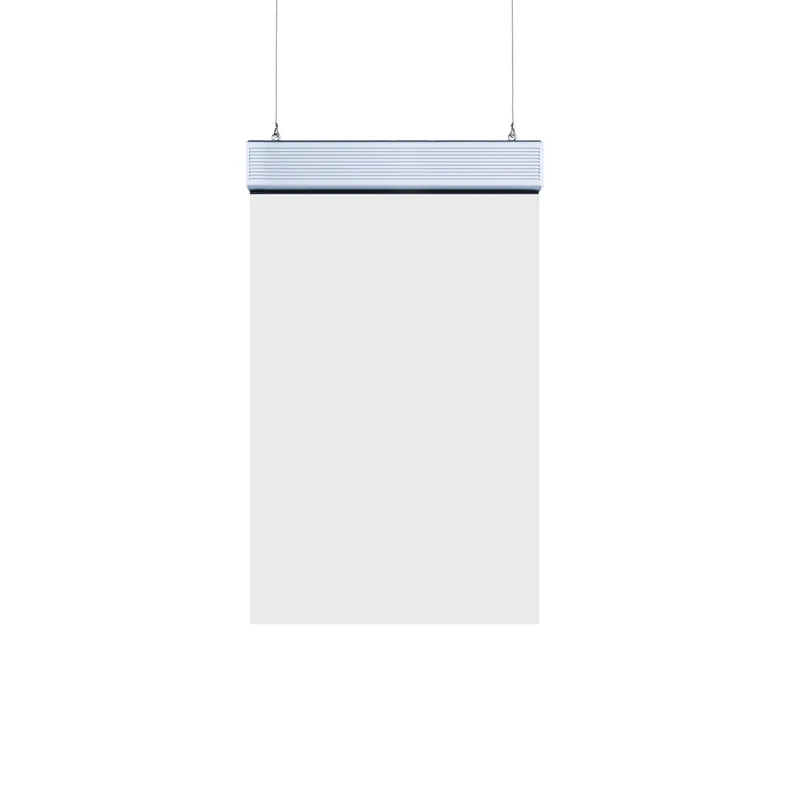

Whole screen transparent and invisible, it does not block any view and light.

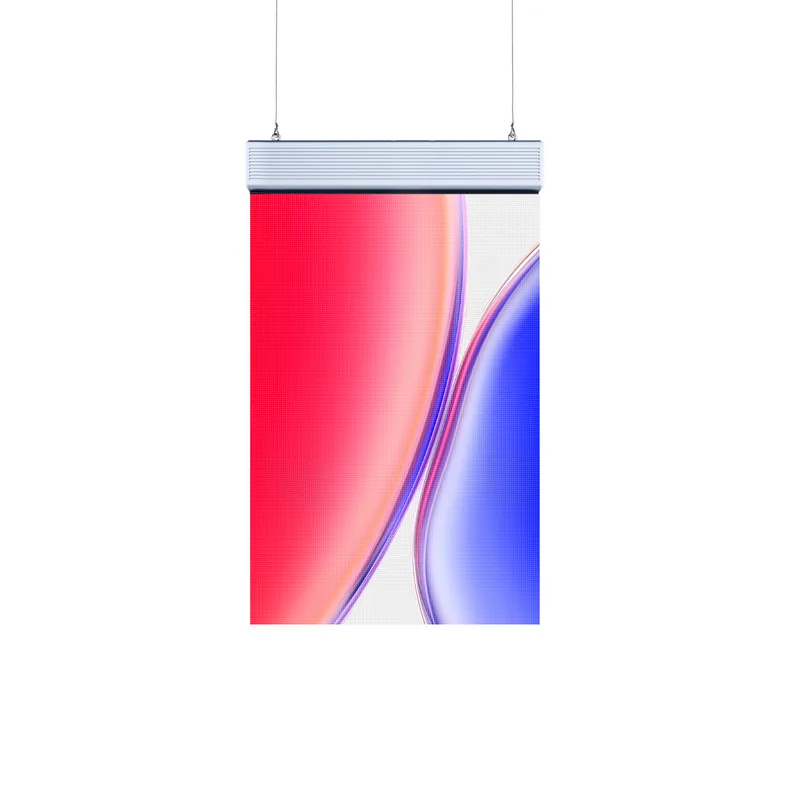

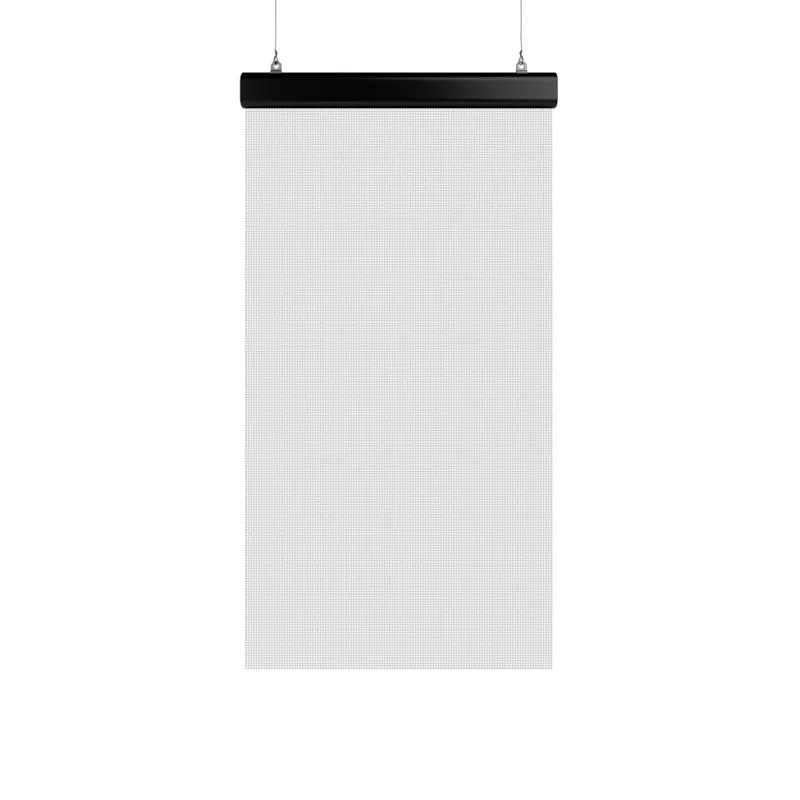

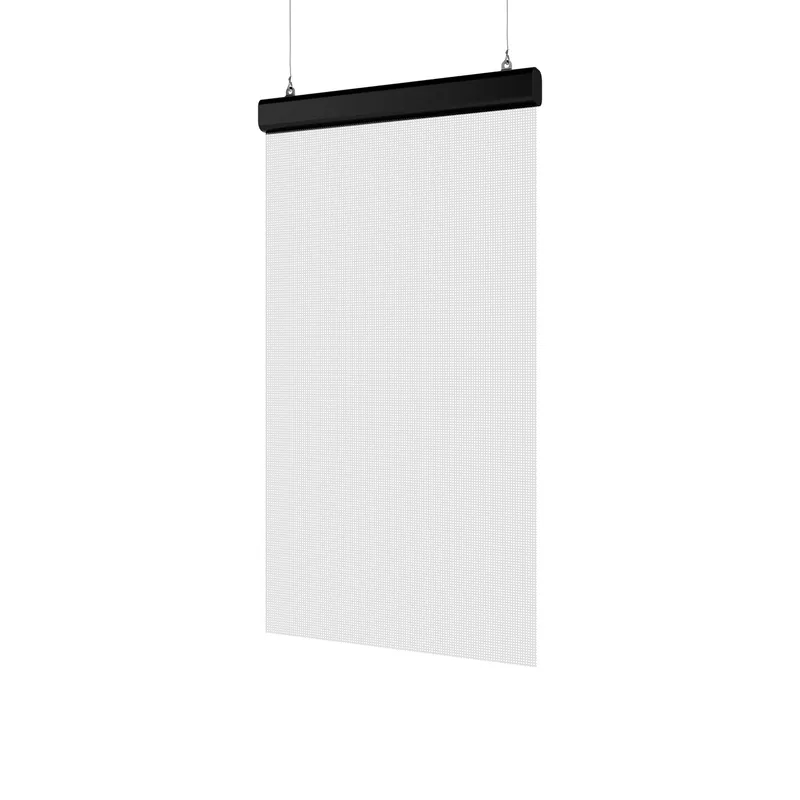

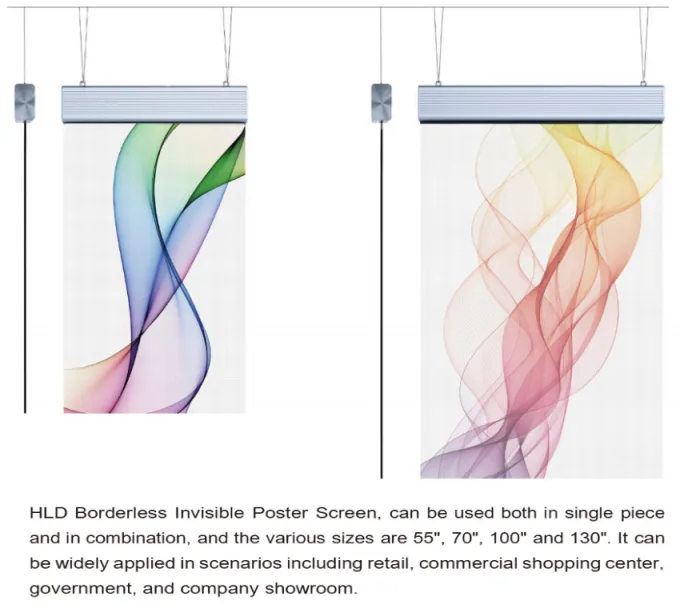

Standard hanging structure, easy installation, widely applied in different kinds of installation environment.

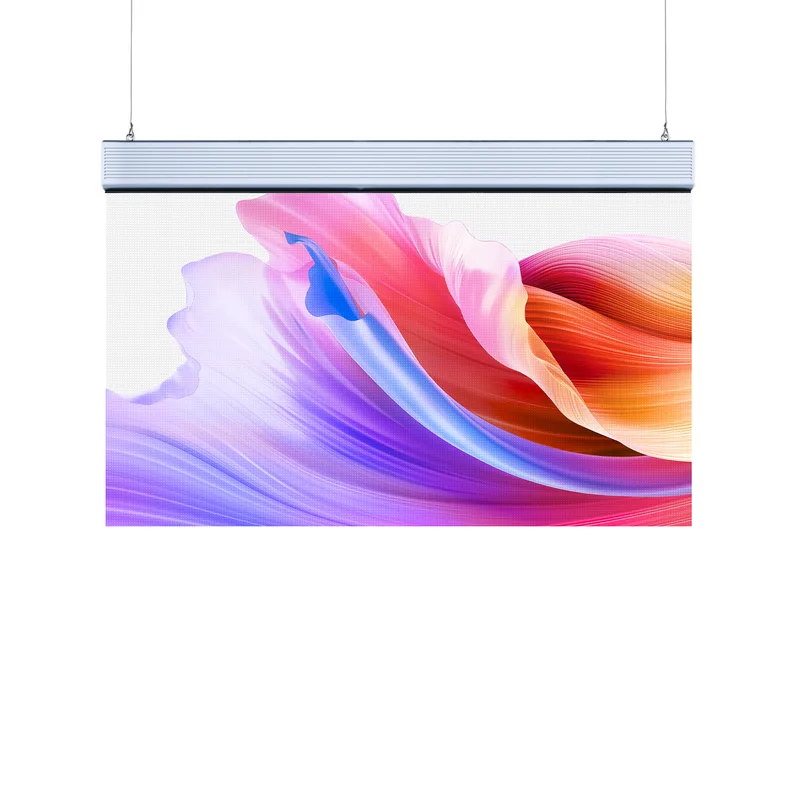

Floating image, bare-eye AR visual effect, eye catching and attractive.
- 01Transforming Spaces with Floating Visuals
In detail
Every detail. Built in.
Structure, features and applications of the SculptStone Holographic Poster Series, as engineered by our R&D team.
Specifications
The numbers. Model by model.
Display performance
SSP2- LED Specification
- 1515
- Pixel Pitch (mm) (horizontal/vertical)
- 2.5-2.5
- Pixel Density (dot/m²)
- 160000
- Transparency Rate
- 85%
- Resolution (dot) (w*h)
- 400*590 / 300*470 / 256*376 / 192*300 / 160*236 / 120*188
- Brightness(cd/m²)
- ≥1200 (Black Light)
- Color Temperature(K)
- 3000~10000
- Scanning Mode
- Static Driving (Single Pixel Single Control)
- Frame Rate (Hz)
- 60~120
- Encapsulation Type
- Light Board & Driving Board Integrated
- Pixel Configuration
- 16bit
Structure & build
SSP2- Screen Dimension(inch)
- 70 / 55 / 70 / 55 / 70 / 55
- Display Dimension(mm) (w*h)
- 1000*1475 / 750*1175 / 1000*1469 / 750*1172 / 1000*1475 / 750*1175
- Profile Dimension (mm)(w*h)
- 1016*1592*78 / 766*1294*78 / 1016*1592*78 / 766*1291.5*78 / 1016*1592*78 / 766*1291.5*78
- Packing Way
- Pearl Cotton & Wooden Box/Flight Case
- Wooden Box Size(L*W*Hmm)
- 1810*1180*335 / 1500*930*335 / 1810*1180*335 / 1500*930*335 / 1810*1180*335 / 1500*930*335
- Flight Case Size(L*W*Hmm)
- 1800*490*1300 / 1490*960*300 / 1800*490*1300 / 1490*960*300 / 1800*490*1300 / 1490*960*300
Power
SSP2- Maximum Power Consumption (w/m²)
- 865
- Average Power Consumption (w/m²)
- 350
- Input Voltage
- AC100~240V 50/60Hz
- Working Voltage for Module
- DC4.2V ±0.2V
Operation & certification
SSP2- Lifespan
- ≥ 100,000.00 hours
- Working Temperature
- Temperature -20 ℃ ~50 ℃
- Working Humidity
- Humidity 20%RH ~ 85%RH (Without Condensation)
- Storage Temperature
- Temperature -20 ℃ ~60 ℃
- Storage Humidity
- Humidity 10%RH ~ 85%RH (Without Condensation)
- Protection Degree
- IP20
- Installation Method
- Hanging Up
- Installation Environment
- Indoor
Specifications depend on the confirmed configuration. Request the full datasheet →
