StellArray SA Series Outdoor LED Screen
Where cityscapes meet starlight
Model
- Pixel Pitch (mm)
- 5
- Cabinet Size (mm)
- 960*960*100
- Brightness
- 8000-10000cd/m² (Optional)
- Refresh Rate
- 3840Hz/7500Hz Optional
01 / 05Overview
Where cityscapes meet starlight

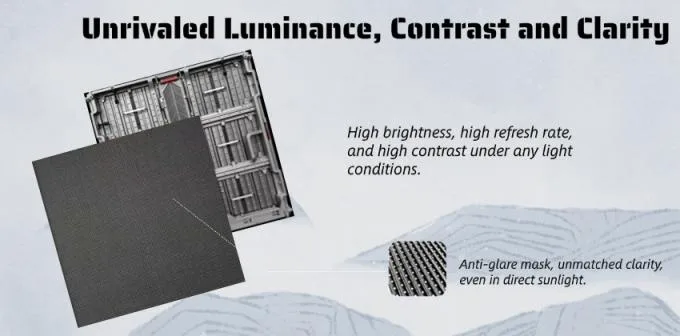

High brightness, high refresh rate, and high contrast under any light conditions.

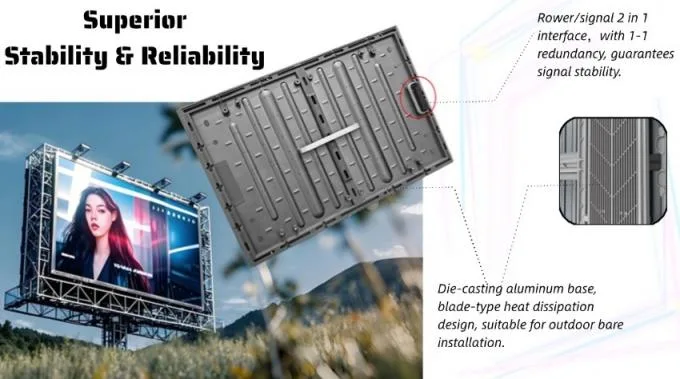

Power/signal 2 in 1 interface, with 1-1 redundancy, guarantees signal stability.
Die-casting aluminum base, blade-type heat dissipation design, suitable for outdoor bare installation.

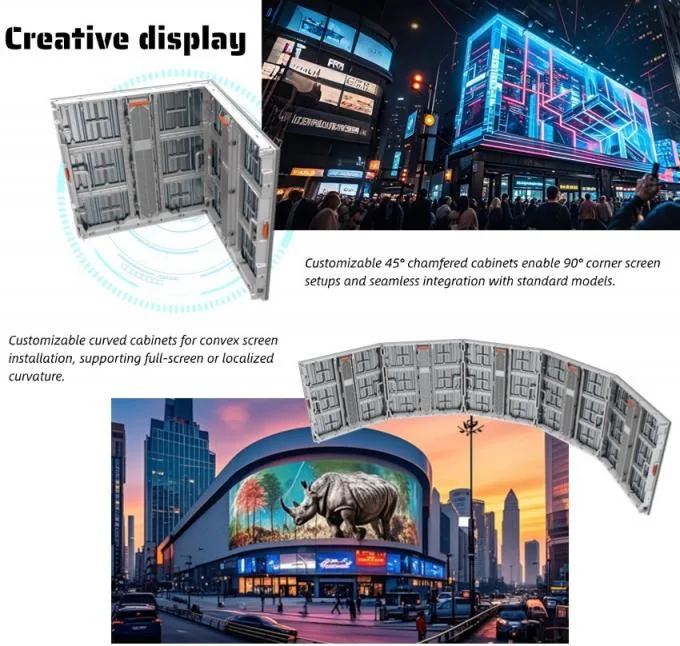

Customizable 45° chamfered cabinets enable 90° corner screen setups and seamless integration with standard models.
- 01Unrivaled Luminance, Contrast and Clarity
- 02Superior Stability & Reliability

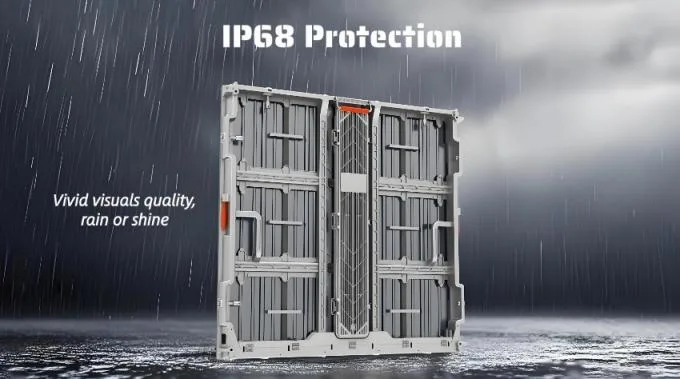

- 03IP68 Protection
- 04Vivid visuals quality, rain or shine
- 05Creative display
- 06Easy Maintenance
In detail
Every detail. Built in.
Structure, features and applications of the StellArray SA Series Outdoor LED Screen, as engineered by our R&D team.
Specifications
The numbers. Model by model.
Display performance
SA5- Encapsulation
- SMD 6-Pin 1921
- Pixel Pitch (mm)
- 5
- Cabinet Resolution (W×H)
- 192*192
- Brightness
- 8000-10000cd/m² (Optional)
- Viewing Angle
- Horizontal ≥165° Vertical ≥145°
- Contrast
- 8000:1
- Frame Rate
- 50/60Hz
- Refresh Rate
- 3840Hz/7500Hz Optional
- Gray Scale
- 16bit
Structure & build
SA5- Cabinet Size (mm)
- 960*960*100
- Module Size (mm)
- 480*320
- Material
- Aluminum/Die-cast aluminum
- Cabinet Weight (kg)
- 27Kg
- Cabinet Flatness
- ≤0.4mm
Power
SA5- Max Power Consumption (Tested at 1000 nits white balance)
- ≤560W/m²
- Average Power Consumption
- 180W/m²
- Working Voltage (V)
- AC100~240V
Operation & certification
SA5- Working Temperature
- -20 ℃ ~+60 ℃
- Working Humidity
- 10%~90%RH (No condensation)

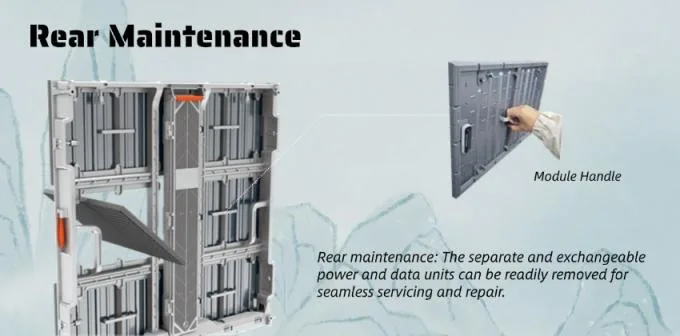

- Maintenance
- Rear-Maintenance
- Protection
- IP68
- Certification
- RoHS, CE, FCC, CCC
Specifications depend on the confirmed configuration. Request the full datasheet →
