Flexible & Curved LED Display
VerditerColor Flexible Screen P2.5
Where Ancient Pigments Achieve Digital Immortality
Model
- Pixel Pitch (mm)
- 2.5
- Module Size (mm)
- 480*320*5.8
- Brightness
- 600cd/m²
- Refresh Rate
- 3840Hz
01 / 05Overview
Where Ancient Pigments Achieve Digital Immortality

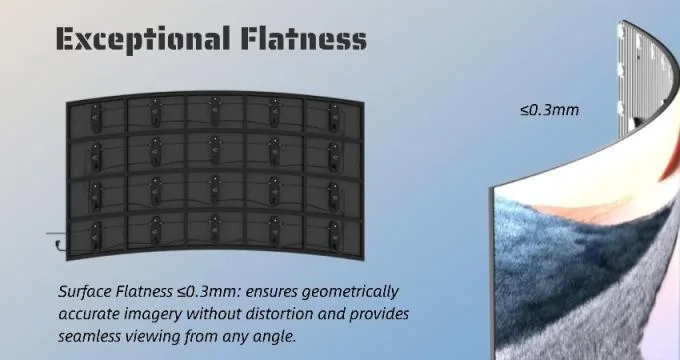

Surface Flatness ≤0.3mm: ensures geometrically accurate imagery without distortion and provides seamless viewing from any angle.
Supports concave, convex, and large-radius ribbon displays for unlimited creative designs.

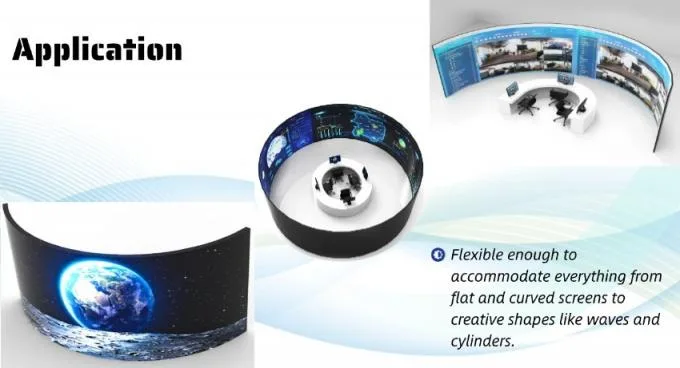

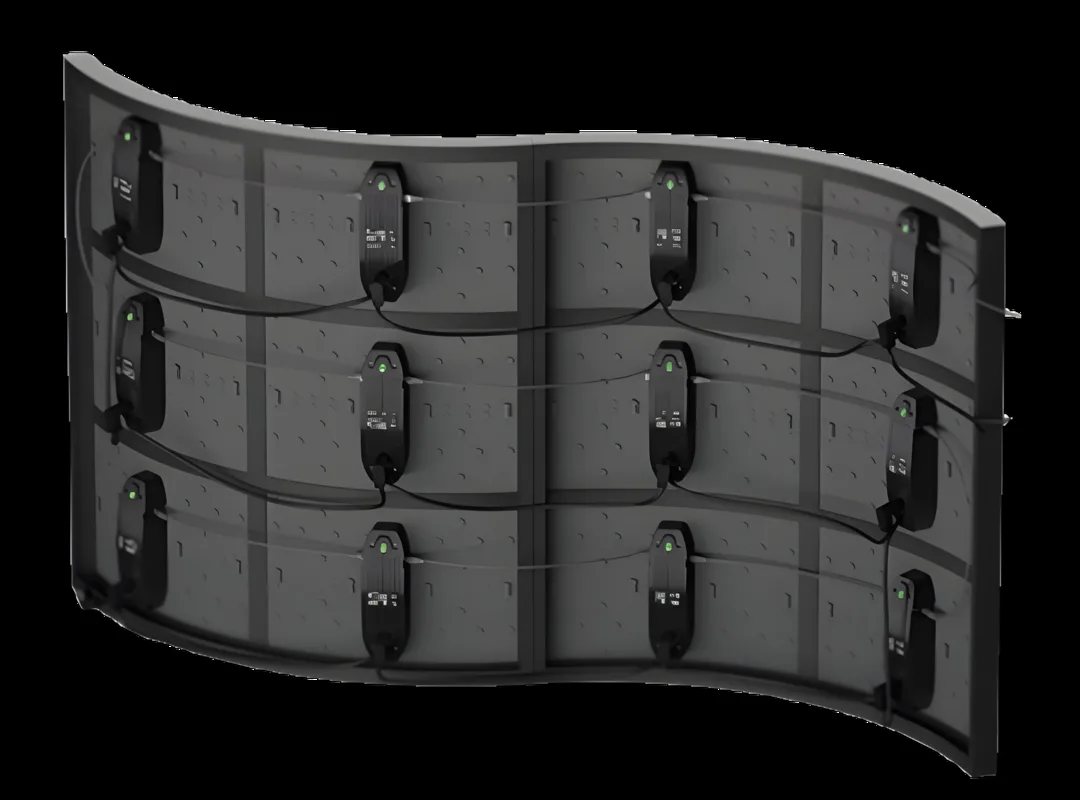

Flexible enough to accommodate everything from flat and curved screens to creative shapes like waves and cylinders.

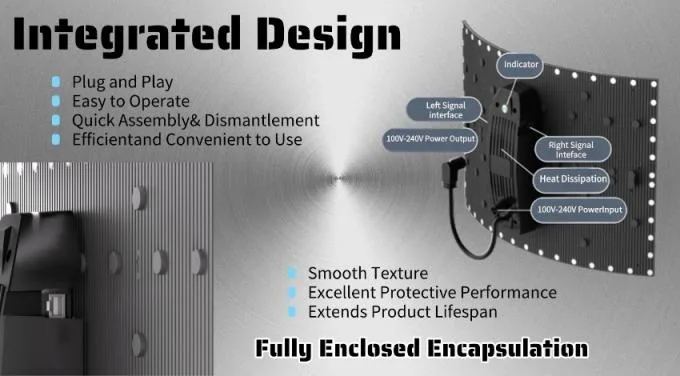

- 01Integrated Design
- 02Plug and Play
- 03Easy to Operate
- 04Quick Assembly & Dismantlement
- 05Efficient and Convenient to Use
- 06Fully Enclosed Encapsulation
In detail
Every detail. Built in.
Structure, features and applications of the VerditerColor Flexible Screen P2.5, as engineered by our R&D team.
Specifications
The numbers. Model by model.
Display performance
VC2.5- Encapsulation
- SMD1515
- Pixel Pitch (mm)
- 2.5
- Module resolution
- 192*128
- Brightness
- 600cd/m²
- Viewing Angle (H/V)
- 150°/120°
- Contrast
- 6000:1
- Scanning Method
- 1/32Scan
- Frame Rate
- 60Hz
- Refresh Rate
- 3840Hz
- Gray Scale
- 14-15bit

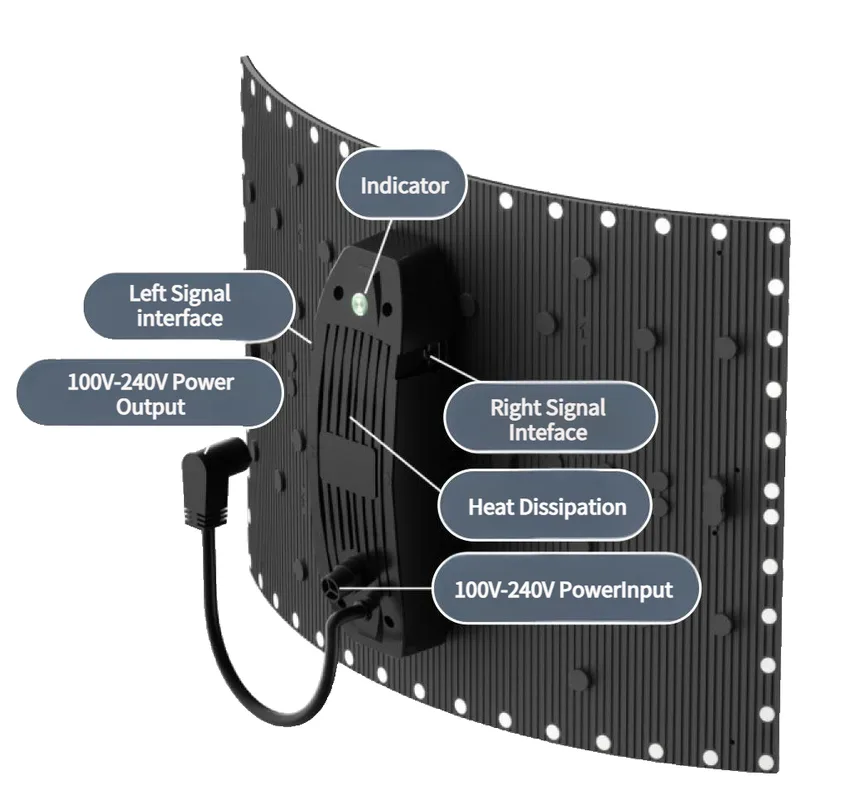

Structure & build

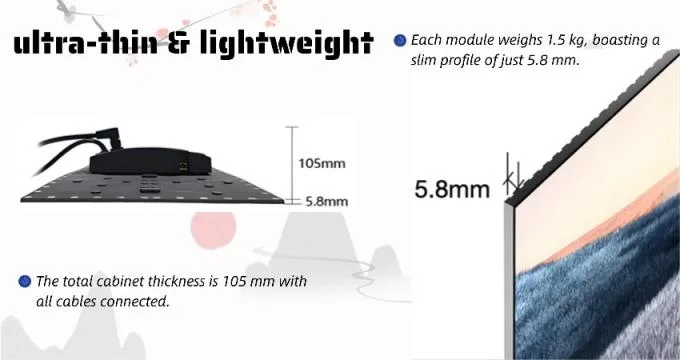

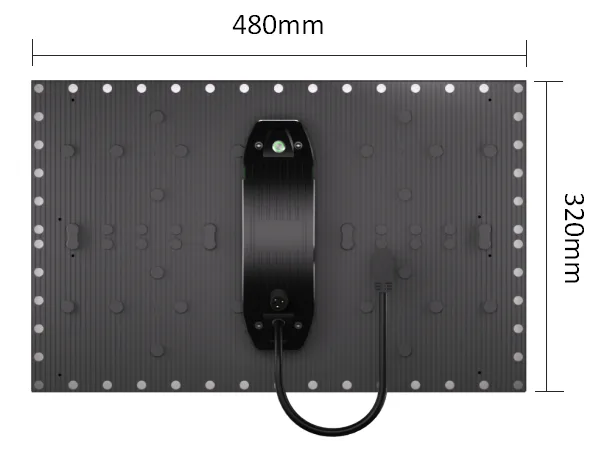

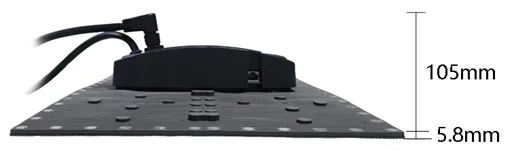

VC2.5- Module Size (mm)
- 480*320*5.8
- Module Material
- Silicone Soft Base Shell
- Module weight (Kg/sheet)
- 1.5

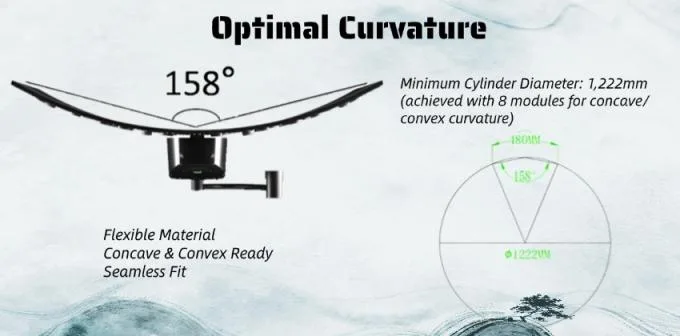

- Assemble diameter
- 1222mm
- Curved curvature
- ≥158°
- Flatness
- ≤0.3mm
Power
VC2.5- Max Power Consumption (Tested at 1000 nits white balance)
- ≤440W/m²
- Average Power Consumption
- 125W/m²
- Working Voltage (V)
- 100-240V (50~60Hz)
Operation & certification
VC2.5- Working Temperature
- -20 ℃ ~+40 ℃
- Working Humidity
- 20%~80%RH (No condensation)
- Maintenance
- Front/Rear Maintenance
- Certification
- CCC, CE, FCC, RoHS
Specifications depend on the confirmed configuration. Request the full datasheet →
