Flexible & Curved LED Display
VerditerColor Flexible LED Module
Where Ancient Pigments Achieve Digital Immortality
Model
- Pixel Pitch (mm)
- 1.25
- Module Size (mm)
- 320*160*8.6
- Brightness
- 600-650cd/m² / 700-750cd/m²
- Refresh Rate
- 3840Hz
01 / 08Overview
Where Ancient Pigments Achieve Digital Immortality

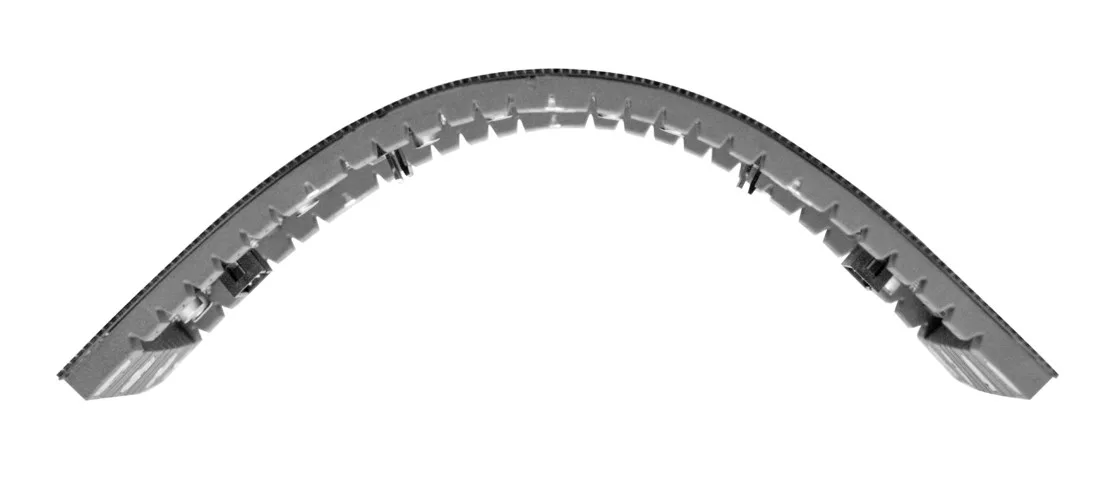

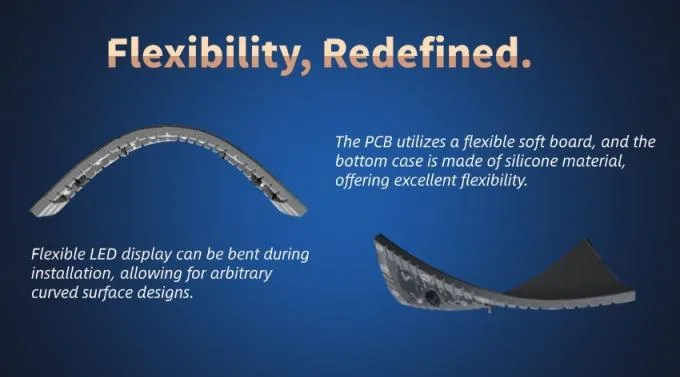

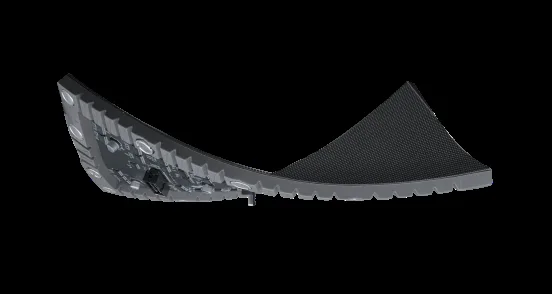

Flexible LED display can be bent during installation, allowing for arbitrary curved surface designs.
The PCB utilizes a flexible soft board, and the bottom case is made of silicone material, offering excellent flexibility.

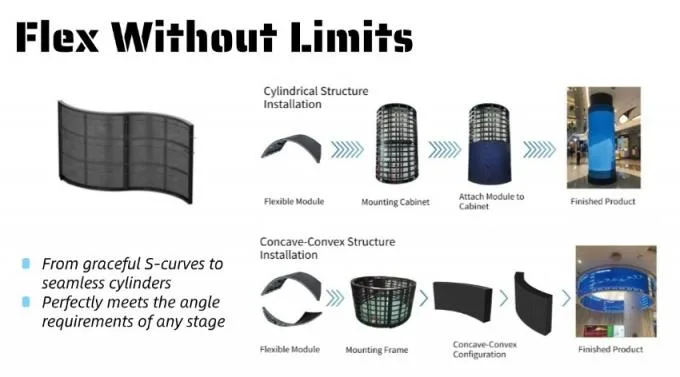

From graceful S-curves to seamless cylinders,perfectly meets the angle requirements of any stage.

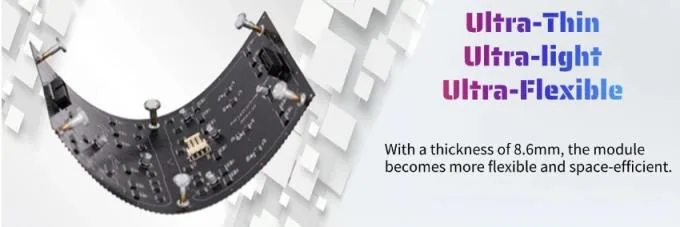

With a thickness of 8.6mm, the module becomes more flexible and space-efficient.
- 01VerditerColor Flexible Module
- 02Flex Without limits

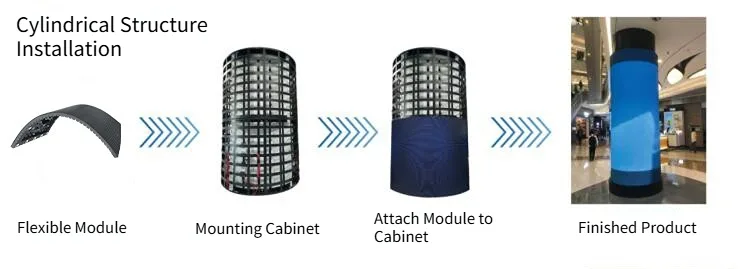

- 03Cylindrical Structure Installation
- 04Flexible Module
- 05Mounting Cabinet
- 06Attach Module to Cabinet
In detail
Every detail. Built in.
Structure, features and applications of the VerditerColor Flexible LED Module, as engineered by our R&D team.
Specifications
The numbers. Model by model.
Display performance
VC012- Encapsulation
- SMD1010
- Pixel Pitch (mm)
- 1.25
- Module resolution
- 256*128
- Brightness
- 600-650cd/m² / 700-750cd/m²
- Viewing Angle (H/V)
- 140°/120°
- Contrast
- 6000:1 / 5000:1 / 6000:1
- Scanning Method
- 1/64Scan
- Frame Rate
- 50/60Hz
- Refresh Rate
- 3840Hz
- Gray Scale
- 13-14bit / 12-13bit / 12bit
Structure & build
VC012- Module Size (mm)
- 320*160*8.6
- Module Material
- Silicone Soft Base Shell
- Module weight (g/sheet)
- 330g
- Assemble diameter
- 1222mm
- Curved curvature
- ≥165°
- Flatness
- ≤0.3mm / ≤ 0.5 mm
Power
VC012- Max Power Consumption (Tested at 1000 nits white balance)
- ≤600W/m²
- Average Power Consumption
- 170W/m²
- Working Voltage (V)
- 220V (50~60Hz)
Operation & certification
VC012- Working Temperature
- -20 ℃ ~+40 ℃
- Working Humidity
- 20%~75%RH (No condensation)
- Maintenance
- Front/Rear Maintenance
- Certification
- CCC, CE, FCC, RoHS
Specifications depend on the confirmed configuration. Request the full datasheet →
