Holographic Invisible LED Display
SculptStone Holographic Mural Series
Pixels Unframed, Universe Unveiled
Model
- Pixel Pitch (mm) (horizontal/vertical)
- 2.5-2.5
- Transparency Rate
- 85%
- Protection Degree
- IP20
01 / 12Overview
Pixels Unframed, Universe Unveiled
Equally spaced pixel layout for high-definition image quality; static scanning with combined
With professional aesthetic design, the display screen is lightweight and beautiful and weighs only 6kg.

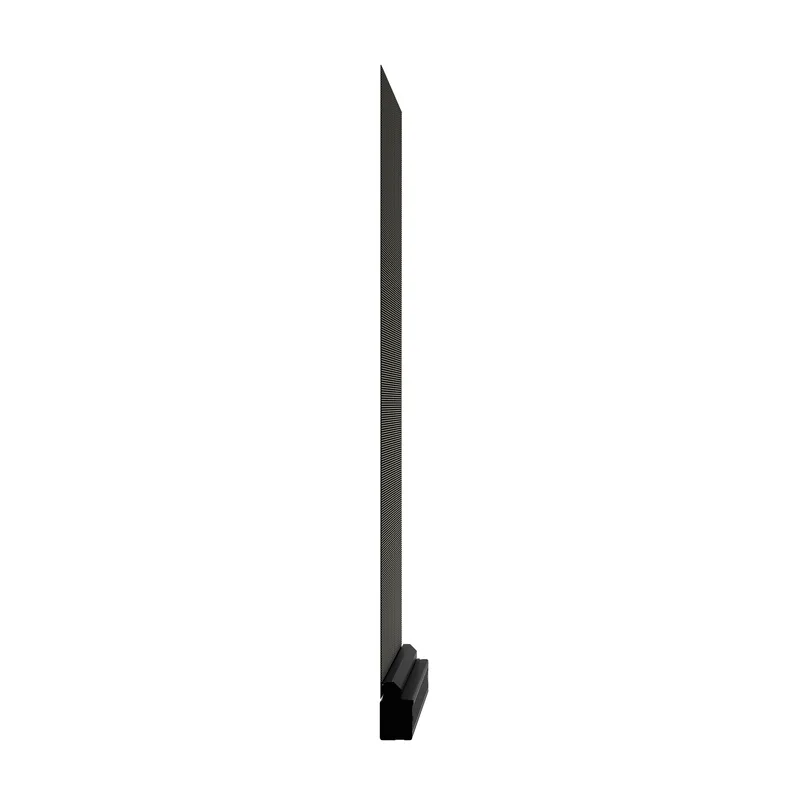

The thickness of the screen is less than 2mm, and it is seamlessly attached on a curved surface to show an integral whole on the transparent glass.

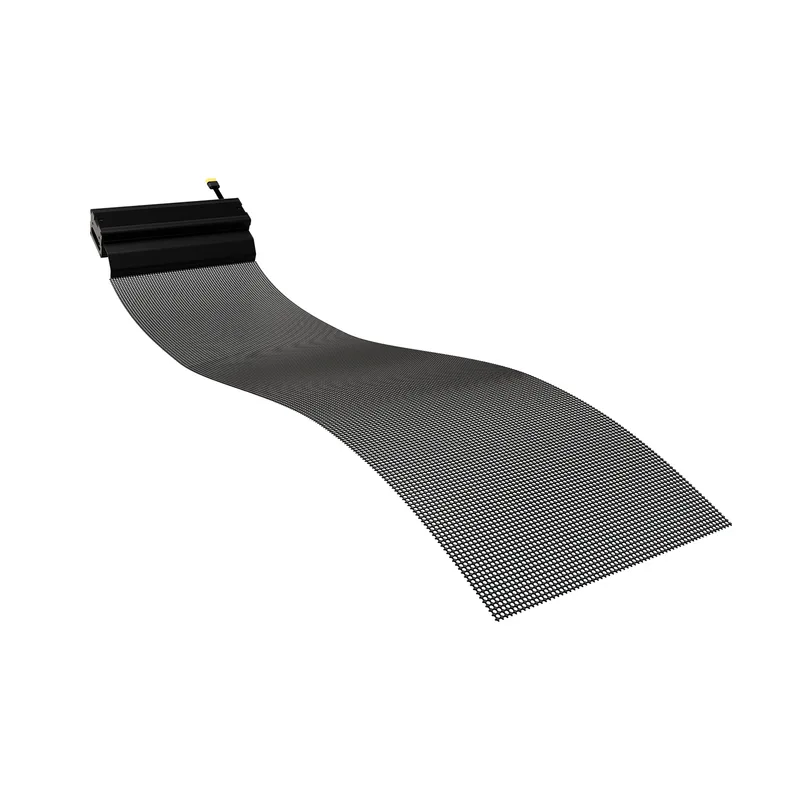

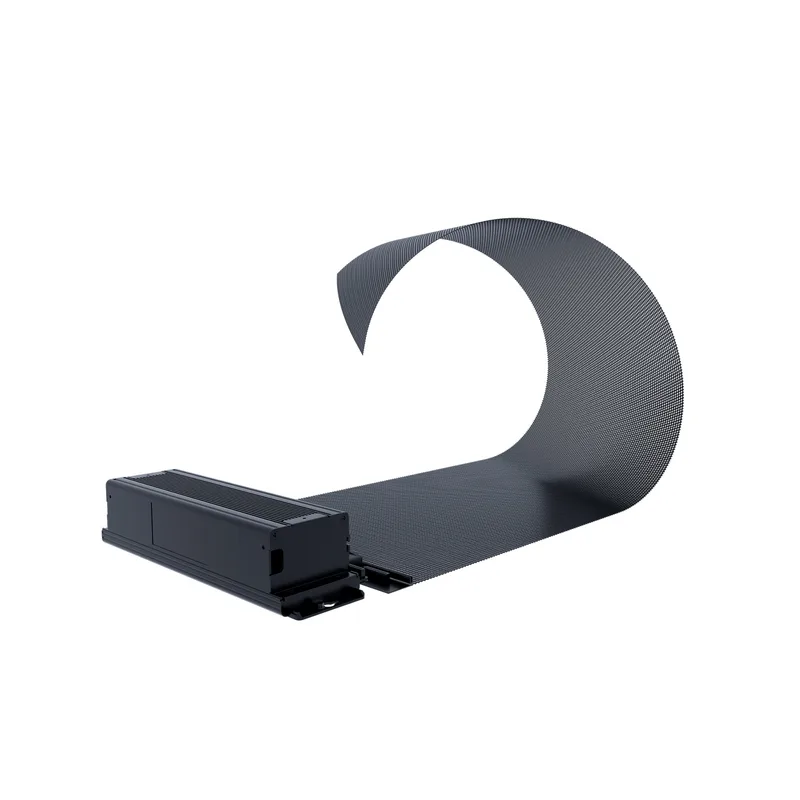

Standard module can be bent and skillful applications. It is the best partner of curved glass and irregular screens.
- 01Transforming Spaces with Floating Visuals
- 02Wholly Transparent and invisible
- 03Holographic 3D suspension images
- 04Transparent and excellent image quality
- 05High brightness & high contrast
- 06Light weight of 6kg
In detail
Every detail. Built in.
Structure, features and applications of the SculptStone Holographic Mural Series, as engineered by our R&D team.
Specifications
The numbers. Model by model.
Display performance
SS M2- LED Specification
- 1515
- Pixel Pitch (mm) (horizontal/vertical)
- 2.5-2.5
- Pixel Density (dot/m²)
- 160000
- Transparency Rate
- 85%
- Resolution (dot) (w*h)
- 50×400 / 50×470 / 64x256 / 64x300 / 64x376 / 40x160 / 40x188 / 40x236 / 96x100
- Brightness(cd/m ²)
- ≥1200 (Black Light) / ≥ 3000 (Black Light) ≥ 4500 (White Light) / ≥2000 (Black Light) ≥3000 (White Light) / ≥5000 (White Light) / ≥4500 (White Light) / ≥7000 (White Light)
- Color Temperature(K)
- 3000~10000
- Scanning Mode
- Light & Driver Integrated, Static Driving
- Frame Rate (Hz)
- 60~120
- Pixel Configuration
- 16bit
Structure & build
SS M2- Display Dimension(mm) (w*h)
- 125×1000 / 125×1175 / 250x1000 / 250x1172 / 250x1469 / 250x1000 / 250x1175 / 250x1475 / 960x1000
- Profile Dimension (mm)(w*h)
- 125×1025 / 125×1200 / 250x1025 / 250x1197 / 250x1500 / 250x1025 / 250x1200 / 250x1500 / 960x1000
- Weight (kg/set)
- 0.2 / 0.25 / 0.4 / 0.5 / 0.6 / 0.4 / 0.5 / 0.6 / 8
- Module Packing Specification (16pcs per box) (mm)
- L1295×W335×H270 / L1295×W335×H270 / L1570×W335×H270 / L1295×W335×H270 / L1570×W335×H270 / Single Cabinet Packaging
Power
SS M2- Maximum Power Consumption (w/m ²)
- 865 / 865 / 865 / 865 / 865 / 865 / 865 / 865 / 800
- Average Power Consumption (w/m ²)
- 350 / 350 / 350 / 350 / 350 / 350 / 350 / 350 / 300
- Power Box Weight (kg/set)
- Type B and D is 1.1kg
- Input Voltage
- AC100~240V 50/60Hz
- Working Voltage for Module
- DC4.2V ±0.2V
- Power Box Packing Specification (30pcs per box) (mm)
- L1595×W335×H270
Operation & certification
SS M2- Lifespan
- ≥ 100,000.00 hours
- Working Temperature
- Temperature -20 ℃ ~50 ℃
- Working Humidity
- Humidity 20%RH ~ 85%RH (Without Condensation)
- Storage Temperature
- Temperature -20 ℃ ~60 ℃
- Storage Humidity
- Humidity 10%RH ~ 85%RH (Without Condensation)
- Protection Degree
- IP20
- Installation Method
- LED Side Glued/PCB Side Glued/Hanging Up
- Installation Environment
- Indoor
Specifications depend on the confirmed configuration. Request the full datasheet →
