LS Series · Lucid Sight
LucidSight SMD Series
Beyond Clarity, To Lucidity
Model
- Pixel Pitch (mm)
- 0.9375
- Cabinet Size (mm)
- 600 x 337.5 x 29
- Brightness
- 500cd/m² (Adjustable)
- Refresh Rate
- 3840Hz
01 / 05Overview
Beyond Clarity, To Lucidity
Smart Modules with built-in calibration data storage, allow interchangeable anywhere, auto-reads calibration data.

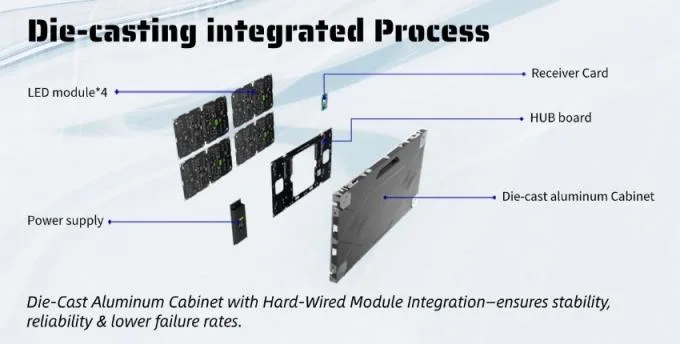

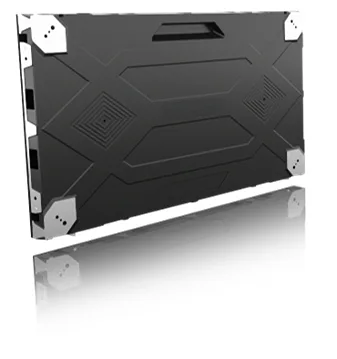

Die-Cast Aluminum Cabinet with Hard-Wired Module Integration—ensures stability, reliability & lower failure rates.

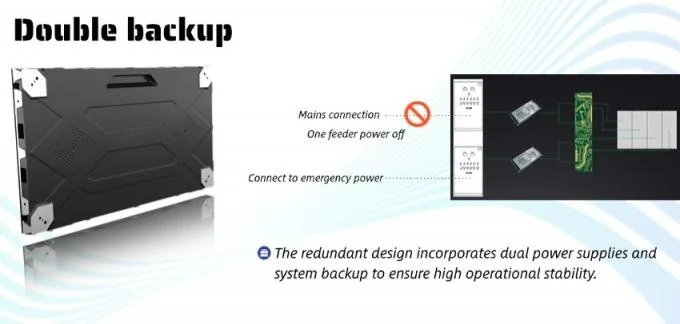

The redundant design incorporates dual power supplies and system backup to ensure high operational stability.

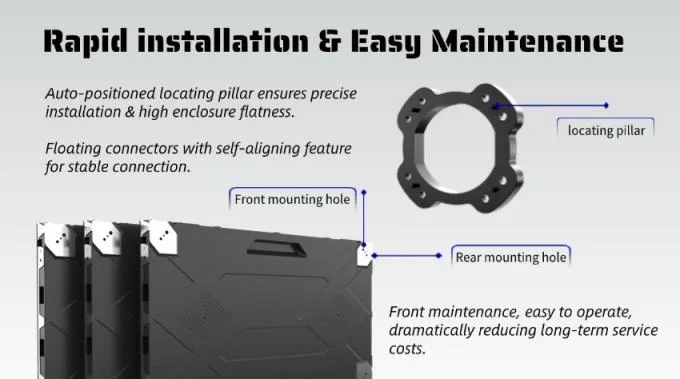

Auto-positioned locating pillar ensures precise installation & high enclosure flatness.

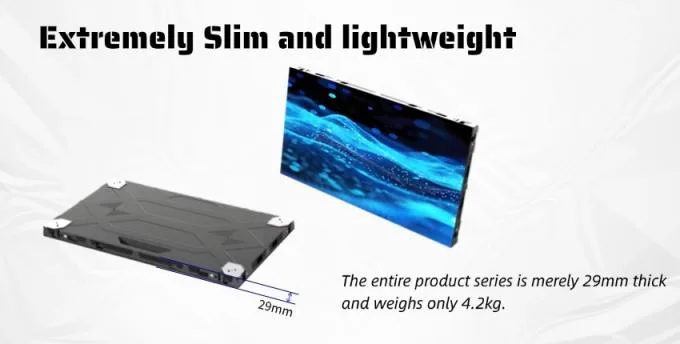

- 01Extremely Slim and lightweight
- 02Smart Modules
- 03Die-casting integrated Process
- 04Double backup
- 05Rapid installation & Easy Maintenance
- 0616:9 display
In detail
Every detail. Built in.
Structure, features and applications of the LucidSight SMD Series, as engineered by our R&D team.
Specifications
The numbers. Model by model.
Display performance
LS0.9- Encapsulation
- MIP0606
- Pixel Pitch (mm)
- 0.9375
- Cabinet Resolution (W×H)
- 640 x 360
- Brightness
- 500cd/m² (Adjustable)
- Viewing Angle (H/V)
- ≥170°/≥170°
- Brightness Uniformity
- ≥98%
- Contrast
- 5000:1
- Frame Rate
- 50/60Hz
- Refresh Rate
- 3840Hz
- Gray Scale
- 14bit
Structure & build
LS0.9- Cabinet Size (mm)
- 600 x 337.5 x 29
- Module Size (mm)
- 300*168.75 / 300*337.5
- Material
- Die-cast aluminum
- Cabinet Weight (kg)
- 4.2 ± 0.05
- Cabinet Flatness
- ≤0.1mm
Power
LS0.9- Max Power Consumption (Tested at 500 nits white balance)
- ≤280W/m²
- Average Power Consumption
- ≤ 100W/m²
- Working Voltage (V)
- AC100~240V (50~60Hz)
Operation & certification
LS0.9- Working Temperature
- -10 ℃ ~+40 ℃
- Working Humidity
- 10%~60%RH (No condensation)
- Maintenance
- Front Maintenance
- Protection
- IP30
- Certification
- CCC, CE, FCC, RoHS
Specifications depend on the confirmed configuration. Request the full datasheet →
