CloudPolar COB Rental Series
Superlative COB, preeminent outdoor
- Pixel pitch
- 0.976–3.9 mm
- Cabinet size
- 500 × 500 × 67 mm
- Cabinet weight
- 6.9–7.1 kg

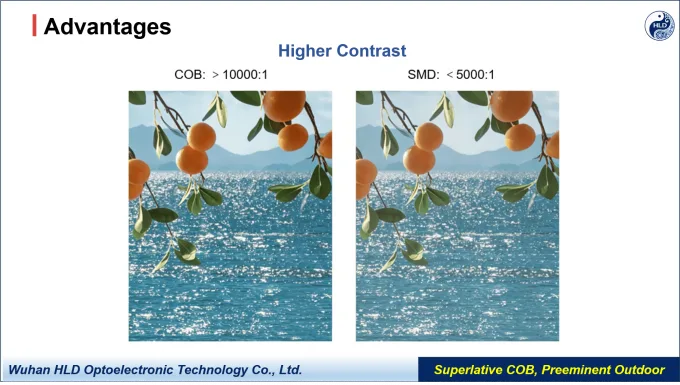

- Contrast
- 10000:1
01 / 09Superlative COB, preeminent outdoor

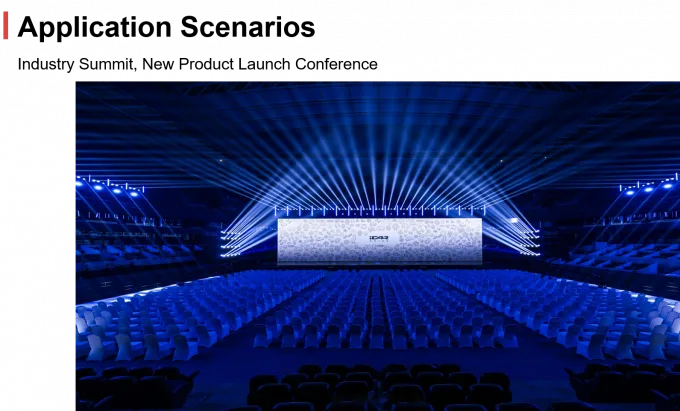

Developed by Wuhan HLD Optoelectronic Technology Co., Ltd., the CloudPolar COB series is a premium rental LED display tailored for high-end market demands. Integrating cutting-edge advanced COB packaging technology, this product delivers exceptional reliability, outstanding durability and ultra-premium image performance. It is the ideal display solution for high-standard scenarios including large live stages, high-end conferences, TV program production, industrial summits and new product launch events. Positioned as an industry pioneer of standardized display panels, it combines superior COB core performance with excellent outdoor adaptability, earning it the reputation of "Superlative COB, Preeminent Outdoor".

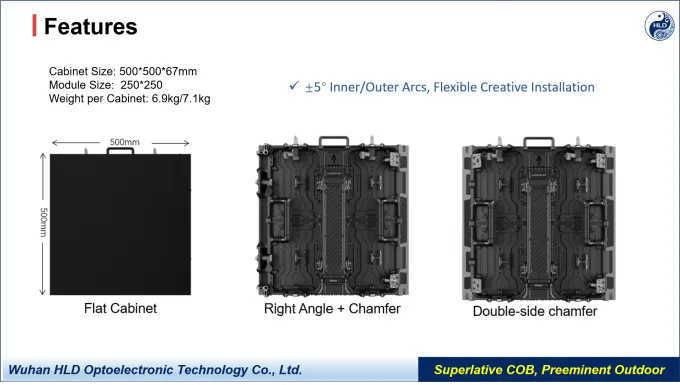

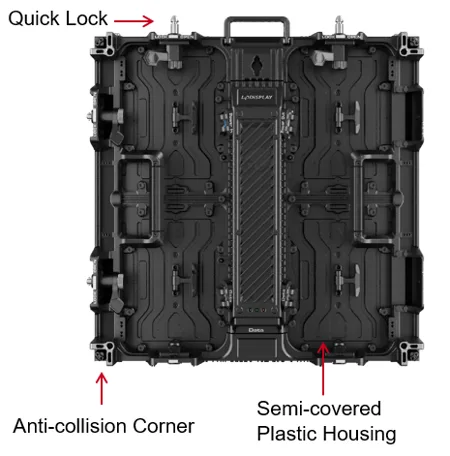

Lightweight design: cabinet weight ranges from 6.9kg to 7.1kg, slim yet robust structure with efficient heat dissipation system

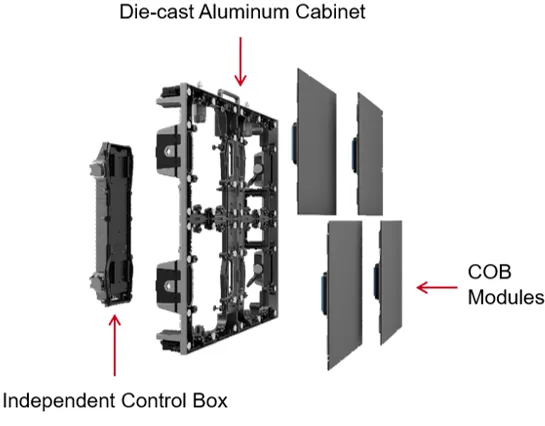

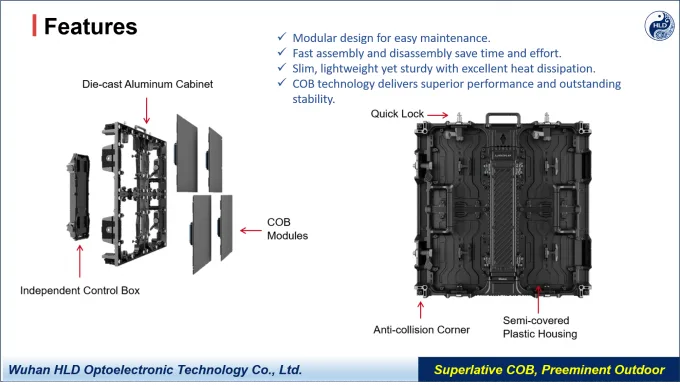

Modular architecture supporting full front maintenance for convenient on-site repair and replacement

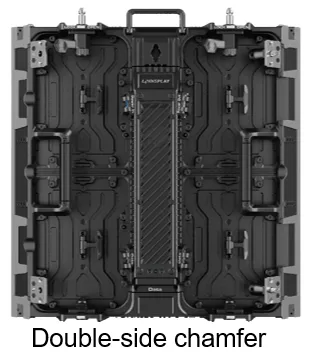

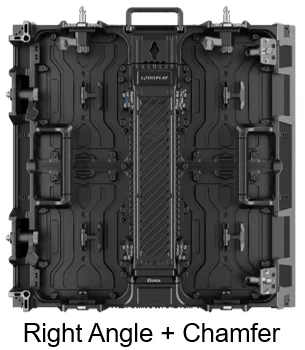

Curved molding: Supports ±5° inner and outer arcs to realize creative curved screen layouts; equipped with right-angle, single/double chamfer cabinets for diversified modeling effects
- 01Cabinet Basic Specifications

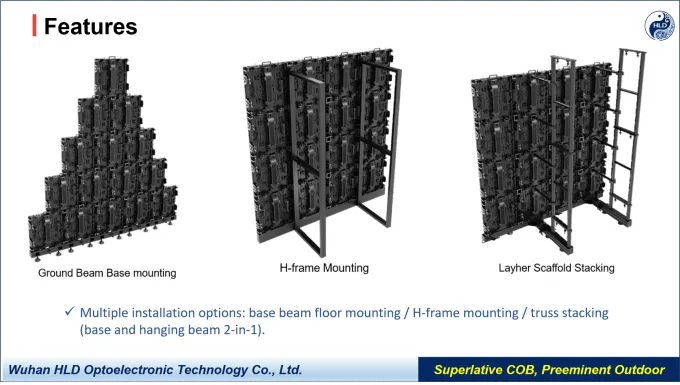

- 02Flexible Creative Installation

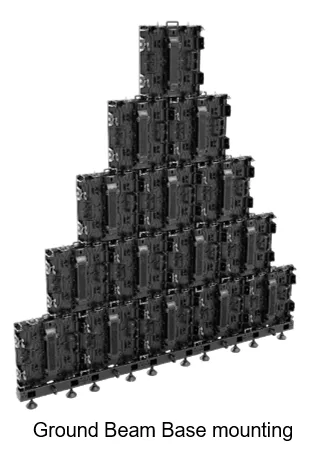

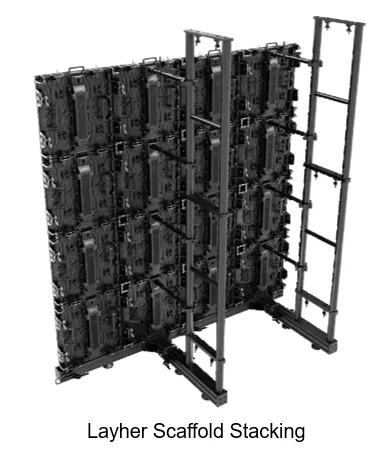

- 03Ground beam base floor mounting

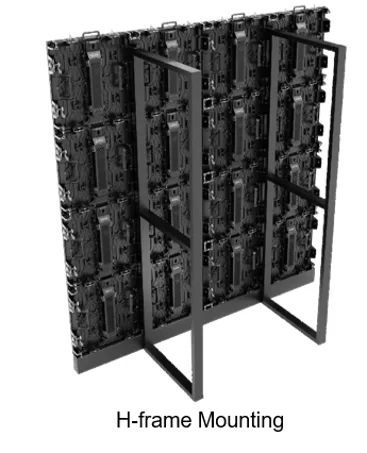

- 04H-frame vertical mounting

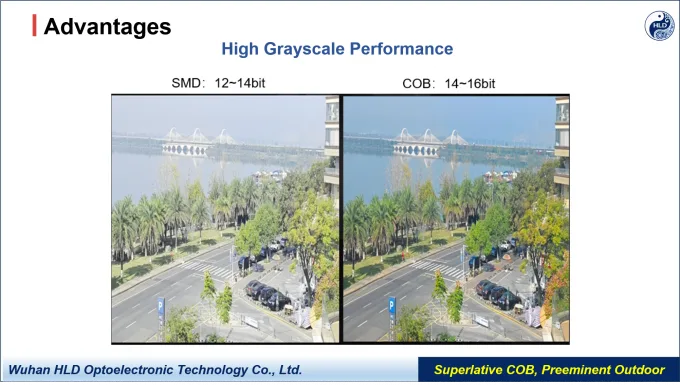

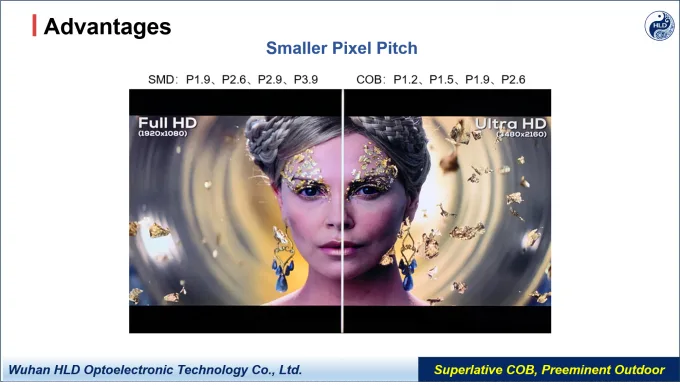

- 05Superior Image Quality

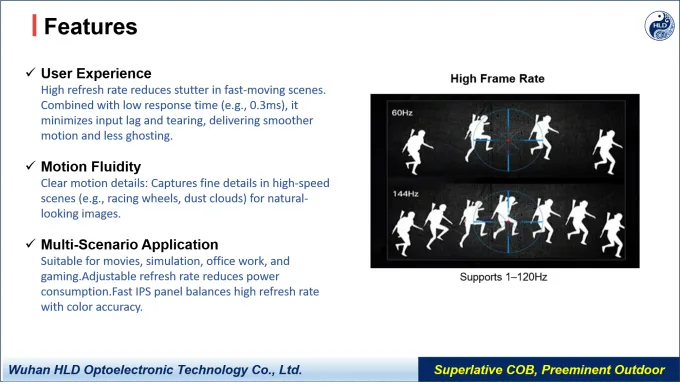

- 06Smooth Dynamic Picture Experience
Every detail. Built in.
Structure, features and applications of the CloudPolar COB Rental Series, as engineered by our R&D team.
The numbers behind it.

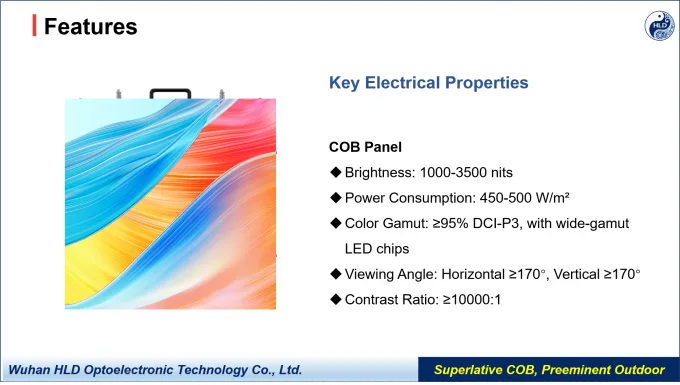

Display performance
- Pixel pitch
- 0.976–3.9 mm
- Technology
- COB
- Contrast
- 10000:1
Structure & build

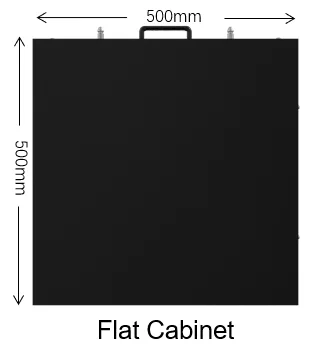

- Cabinet size
- 500 × 500 × 67 mm
- Module size
- 250 × 250 mm
- Cabinet weight
- 6.9–7.1 kg
- Curved splicing
- ±5° inner and outer arcs
Operation & certification
- Maintenance
- Full front maintenance
Specifications depend on the confirmed configuration. Request the full datasheet →
