COB Pro Series
InkScape™ COB Pro Series
Where Ink Meets Light, The Art of Perfect Black
Model
- Pixel Pitch (mm)
- 0.625
- Cabinet Size (mm)

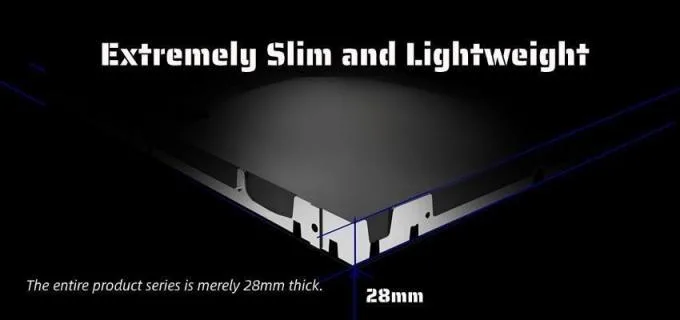

- 600x337.5x28
- Brightness
- 0-1000cd/m² (Adjustable)
- Refresh Rate
- 3840Hz
01 / 08Overview
Where Ink Meets Light, The Art of Perfect Black

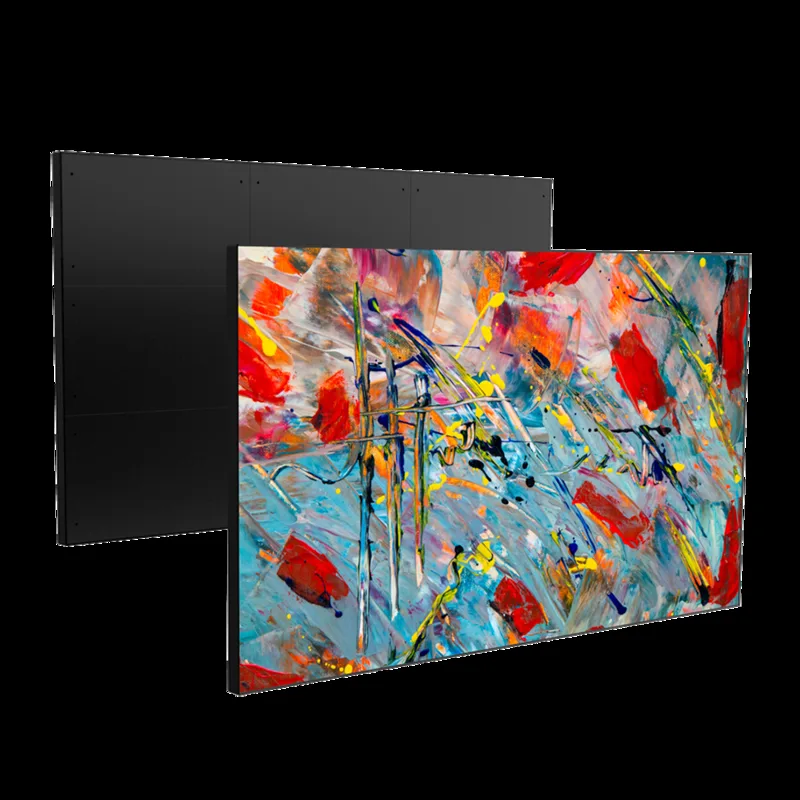

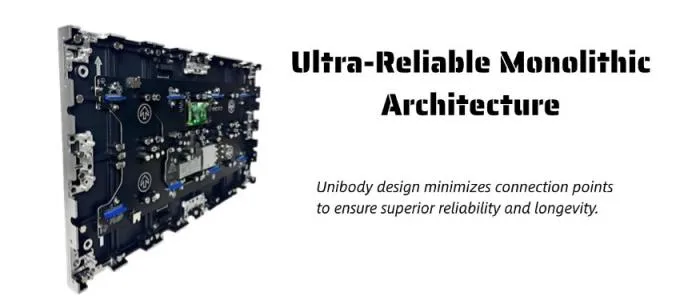

Unibody design minimizes connection points to ensure superior reliability and longevity.

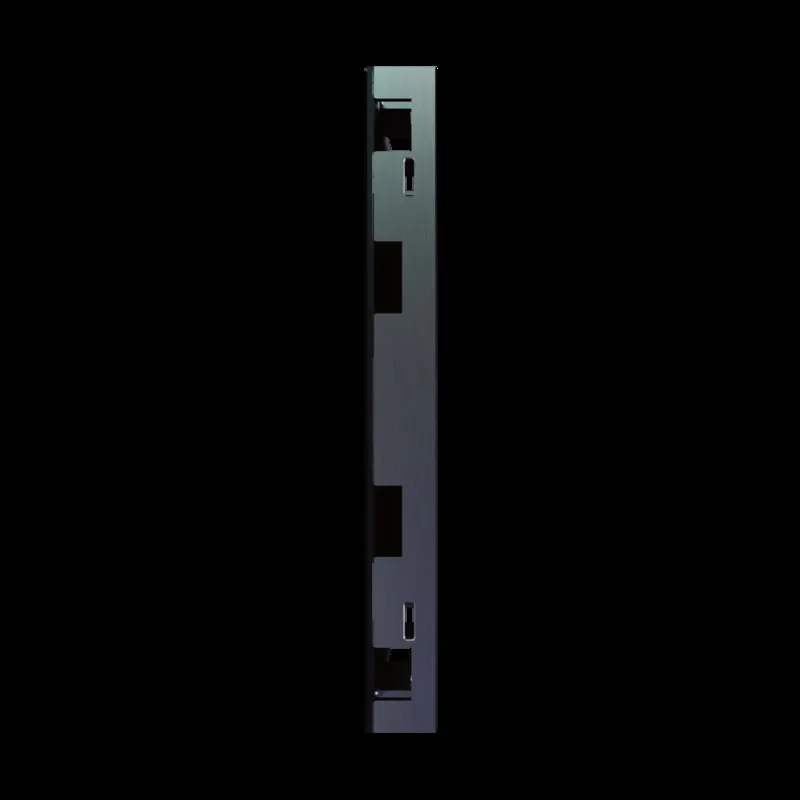

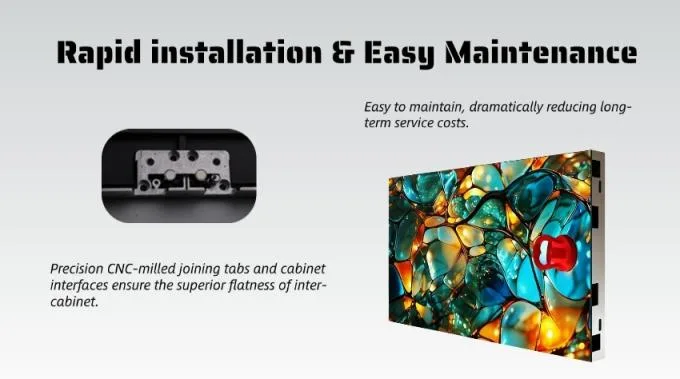

Precision CNC-milled joining tabs and cabinet interfaces ensure the superior flatness of inter-cabinet.
170 ° viewing angle COB surface with moi r é-free clarity and ultra-high

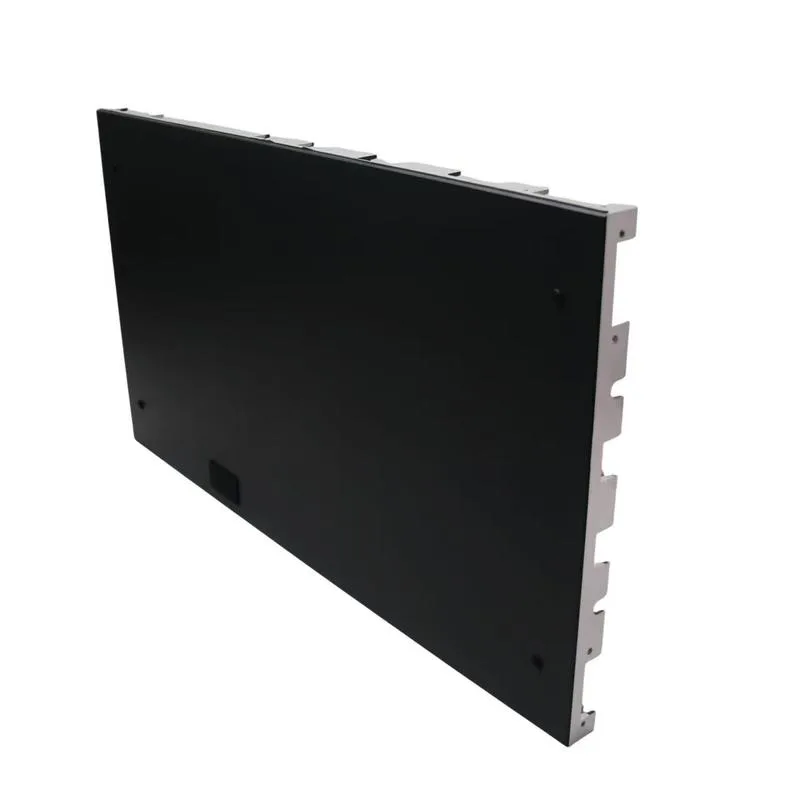

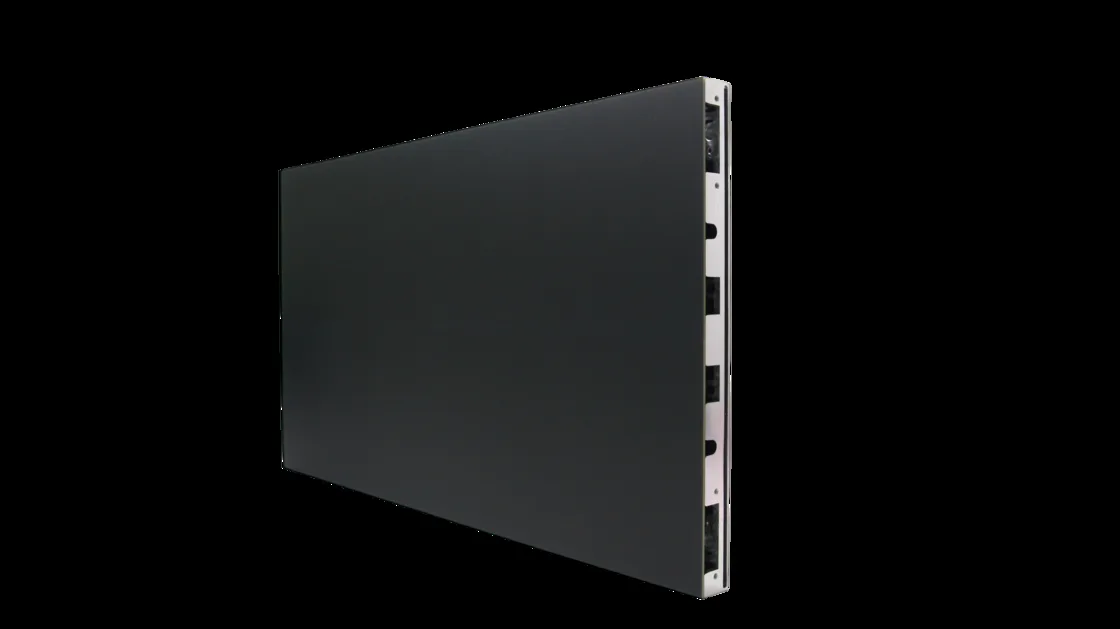

With a 600*337.5mm cabinet size, you can perfectly assemble a HD, 2K and 4K resolution wall, creating a perfect display effect with the right content.

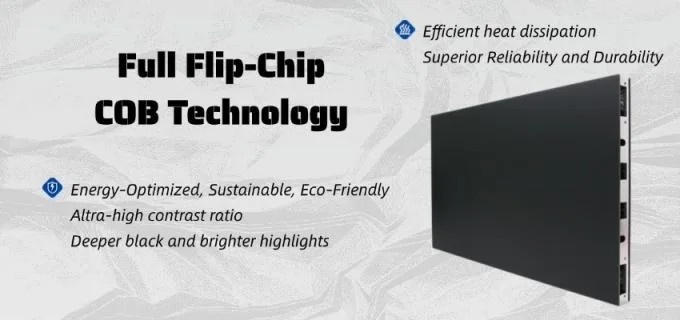

- 01Full Flip-Chip COB Technology
- 02Efficient heat dissipation
- 03Superior Reliability and Durability
- 04Ultra-high contrast ratio
- 05Deeper blacks and brighter highlights

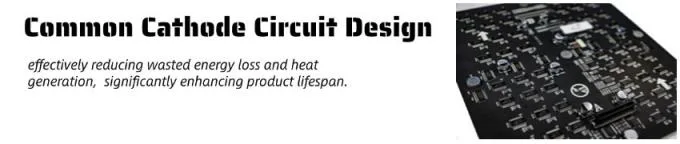

- 06Common Cathode Circuit Design
In detail
Every detail. Built in.

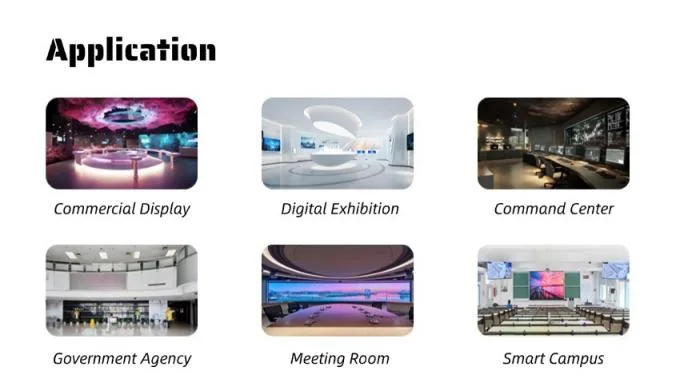

Structure, features and applications of the InkScape™ COB Pro Series, as engineered by our R&D team.
Specifications
The numbers. Model by model.
Display performance
IS006- Encapsulation
- Full Flip-Chip COB Technology
- Pixel Pitch (mm)
- 0.625
- Cabinet Resolution (W×H)
- 960*540
- Brightness
- 0-1000cd/m² (Adjustable)
- Viewing Angle (H/V)
- 170°/170°
- Brightness Uniformity
- ≥98%
- Contrast
- 10000:1
- Frame Rate
- 50/60Hz
- Refresh Rate
- 3840Hz
- Gray Scale
- 16bit
Structure & build
IS006- Cabinet Size (mm)
- 600x337.5x28
- Module Size (mm)
- 150x168.75
- Material
- Die-cast aluminum
- Cabinet Weight (kg)
- 4.7Kg
- Cabinet Flatness
- ≤0.1mm
Power
IS006- Max Power Consumption (Tested at 1000 nits white balance)
- ≤700W/m²
- Average Power Consumption
- 280W/m²
- Working Voltage (V)
- AC100~240V (50~60Hz)
Operation & certification
IS006- Working Temperature
- -20 ℃ ~+60 ℃
- Working Humidity
- 10%~90%RH (No condensation)
- Maintenance
- Front Maintenance
- Protection
- IP41
- Certification
- CCC, CE, FCC, RoHS
Specifications depend on the confirmed configuration. Request the full datasheet →
