IS COB Series

InkScape™ IS COB Series

Fine-pitch COB. A remarkably slim foundation for your next display.

Model

Pixel Pitch (mm): 0.9375

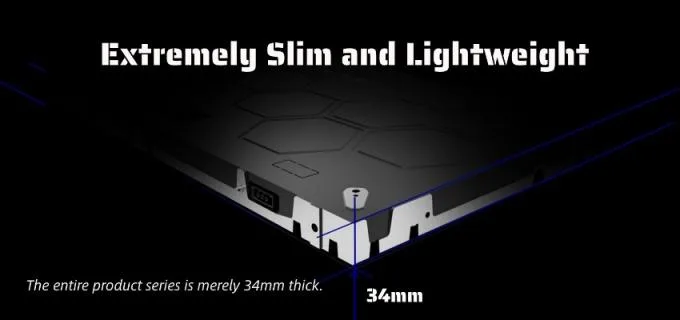

Cabinet Size (mm): 600*337.5*34
Brightness: ≥ 600 nits
Refresh Rate: 3840Hz

01 / 06

Overview

Fine-pitch COB. A remarkably slim foundation for your next display.

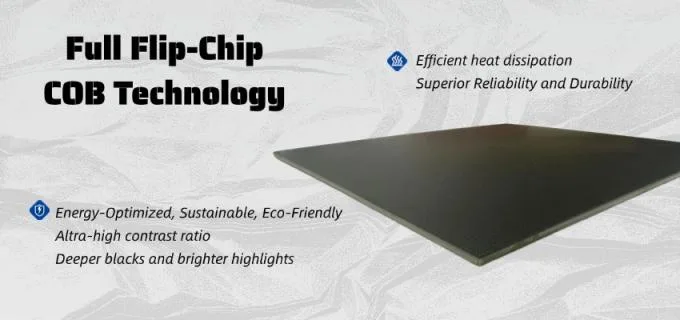

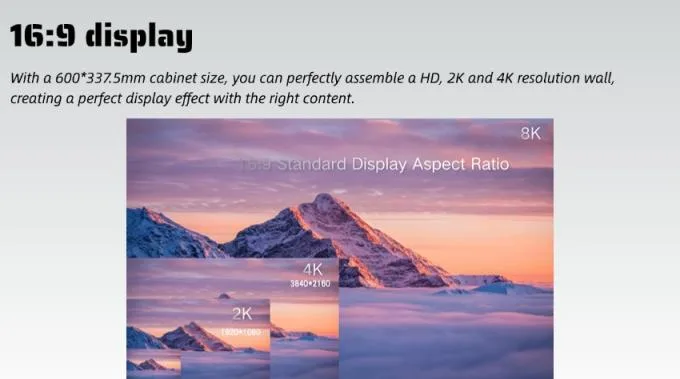

Packaging & Display Technology : Adopts Full Flip-Chip COB Technology, which enhances image quality, reduces failures, enables efficient heat dissipation, and ensures superior reliability and durability; features a 16:9 golden display ratio, allowing perfect assembly of HD, 2K, 4K, and even 8K resolution walls with a 600×337.5mm cabinet size for optimal display effects.

Performance Indicators : Boasts an ultra-high refresh rate of 3840Hz, an ultra-high contrast ratio of 10000:1 (delivering deeper blacks and brighter highlights), a brightness of ≥600 nits, brightness uniformity of ≥98%, a frame rate of 50/60Hz, and 14-bit gray scale.

Energy Conservation & Protection : Employs a common cathode 3.8+2.8V power supply for energy saving, achieving an average power consumption of 120W/m² and a maximum power consumption (tested at 1000 nits white balance) of ≤300W/m²; holds an IP30 protection rating and is energy-optimized, sustainable, and eco-friendly.

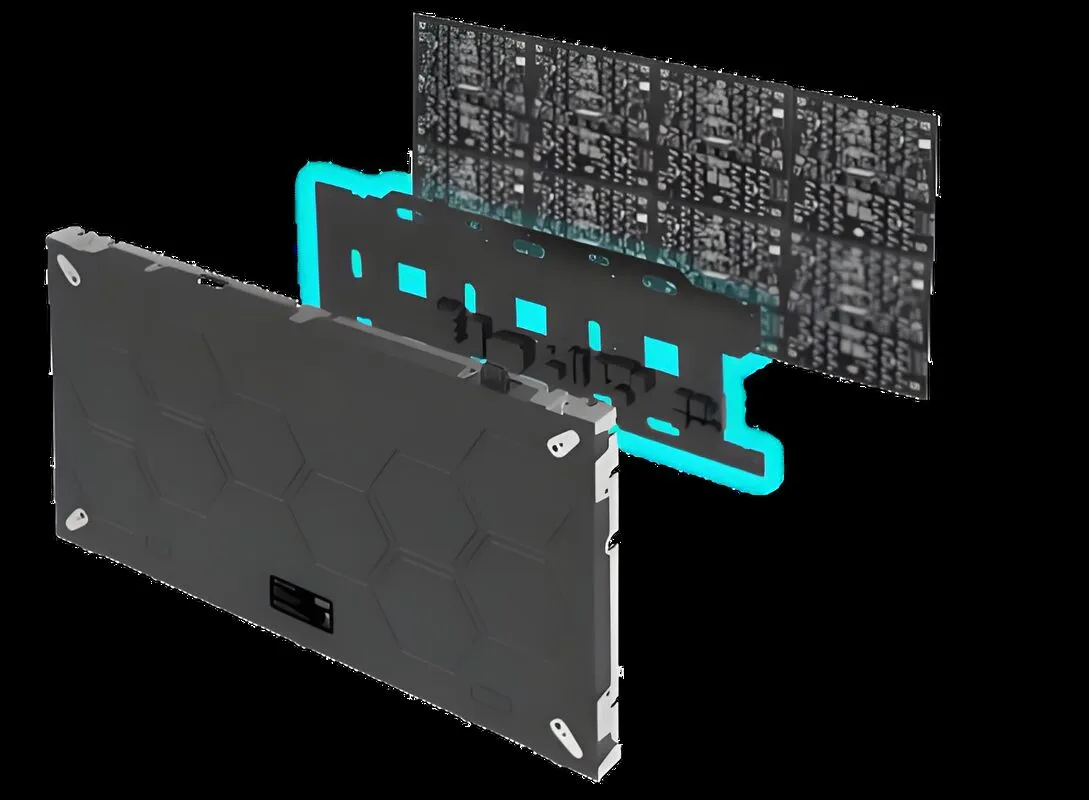

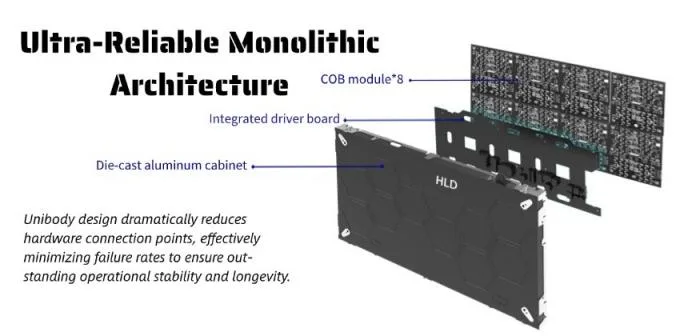

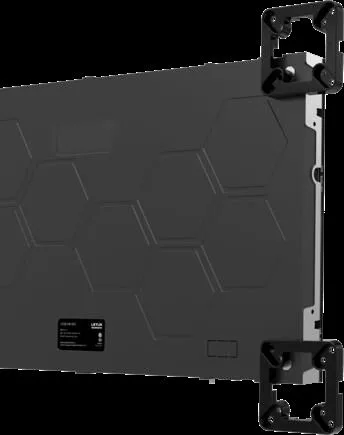

Integration & Structure : Features high integration with a 3-in-1 driver (power, receiver, and HUB); adopts an ultra-reliable monolithic architecture, including 8 COB modules and an integrated driver board; uses a die-cast aluminum cabinet with a unibody design that significantly reduces hardware connection points, minimizing failure rates and ensuring excellent operational stability and longevity.
