Immersive LED Display
Interactive LED Dance Floor
Pixels Unframed, Universe Unveiled
Model
- Pixel Pitch (mm)
- 2.5
- Module Size (mm)
- 250*250*18
- Brightness
- indoor≥1300cd/m²
- Refresh Rate(Hz)
- 1920/3840/7680(Hz)
01 / 09Overview
Pixels Unframed, Universe Unveiled
With a mechanically optimized structure, the HLD floor LED display achieves a ultimate bearing capacity of 3 tons.

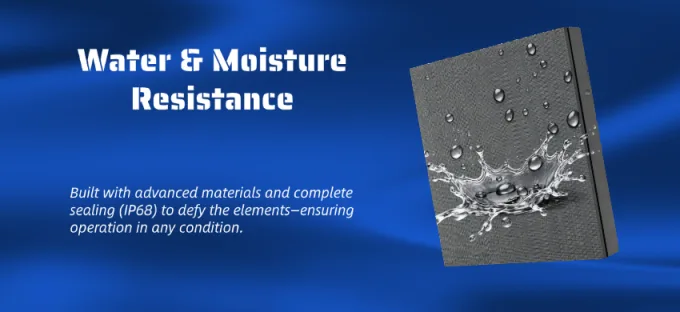

Built with advanced materials and complete sealing (IP68)to defy the elements-ensuring operation in any condition.

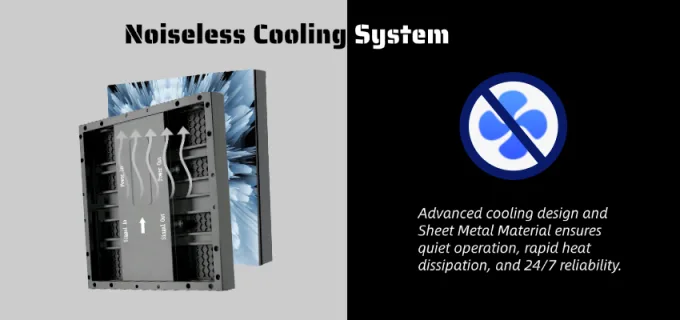

Advanced cooling design and Sheet Metal Material ensures quiet operation, rapid heat dissipation, and 24/7 reliability.

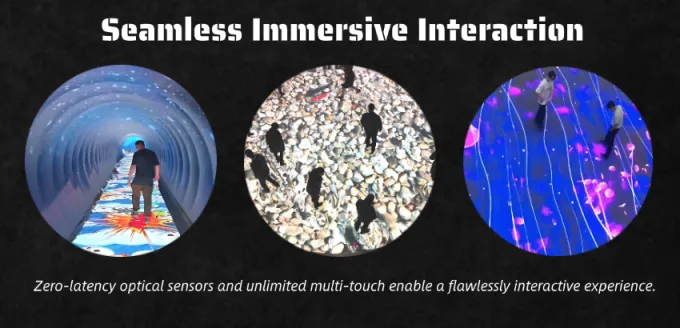

Zero-latency optical sensors and unlimited multi-touch enable a flawlessly interactive experience.

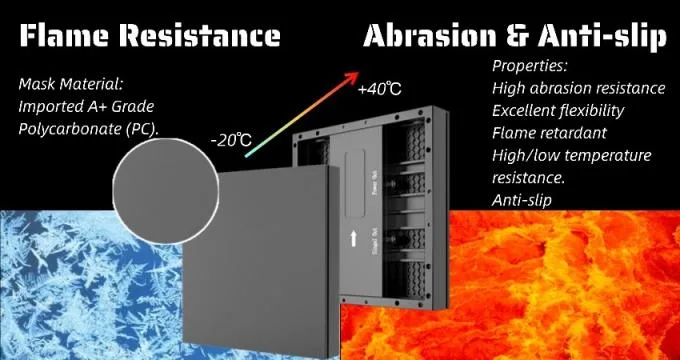

- 01Abrasion & Anti-Slip
- 02High abrasion resistance
- 03Excellent flexibility
- 04Flame retardant
- 05High/low temperature resistance
- 06Flame Resistance
In detail
Every detail. Built in.
Structure, features and applications of the Interactive LED Dance Floor, as engineered by our R&D team.
Specifications
The numbers. Model by model.
Display performance
SSF2.5- Encapsulation
- SMD 3in1
- Pixel Pitch (mm)
- 2.5
- Module resolution (W × H)
- 100*100
- Cabinet Resolution (W × H)
- 200*200
- Unit Area (m²)
- 0.25/0.5 (optional)
- Brightness
- indoor≥1300cd/m²
- Viewing Angle (H/V)
- 120°/120°
- Brightness Uniformity
- ≥95%
- Frame Rate
- 50/60Hz
- Refresh Rate(Hz)
- 1920/3840/7680(Hz)
- Interactive Function
- Interactive/Conventional Mode (optional)
Structure & build
SSF2.5- Module Size (mm)
- 250*250*18
- Module weight (kg/sheet)
- 0.75
- Cabinet Size (mm)
- 500*500*78/500*1000*78 (optional)
- Cabinet Weight (kg)
- 11/22 (optional)
- Flatness
- ≤ 1mm
Power
SSF2.5- Max Power Consumption
- 800W/m²
- Average Power Consumption
- 300W/m²
- Working Voltage (V)
- AC220V
Operation & certification
SSF2.5- Protection
- Indoor(Front IP54/Rear IP43)
- Working Temperature
- -20 ℃ ~+55 ℃
- Working Humidity
- 10%~90%RH (No condensation)
- Maintenance
- Front Maintenance
- Certification
- CCC, CE, FCC, RoHS
Specifications depend on the confirmed configuration. Request the full datasheet →
