Rollable LED Display
SculptStone Roller LED Screen
Pixels Unframed, Universe Unveiled
Model
- Pixel Pitch (mm)
- 0.78
- Module Size (mm)
- 500*62.5*17
- Refresh Rate
- 3840Hz
- Weight (kg)
- 17Kg per sqm
01 / 08Overview
Pixels Unframed, Universe Unveiled
Comprehensive resistance to impact, dust, water, and moisture / Abrasion and scratches defensed / UV Resistant / Superior Ink Color Consistency / Mirror-Like Flatness / Superior Durability

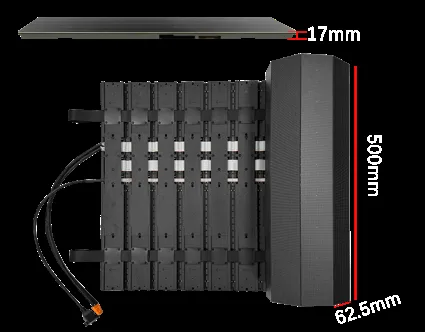

With a slim 17mm thickness and 17kg/m weight, it enables space-saving and effortless installation.

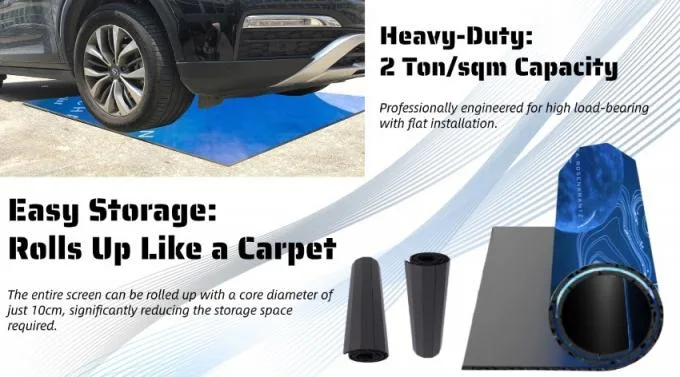

Professionally engineered for high load-bearing with flat installation.

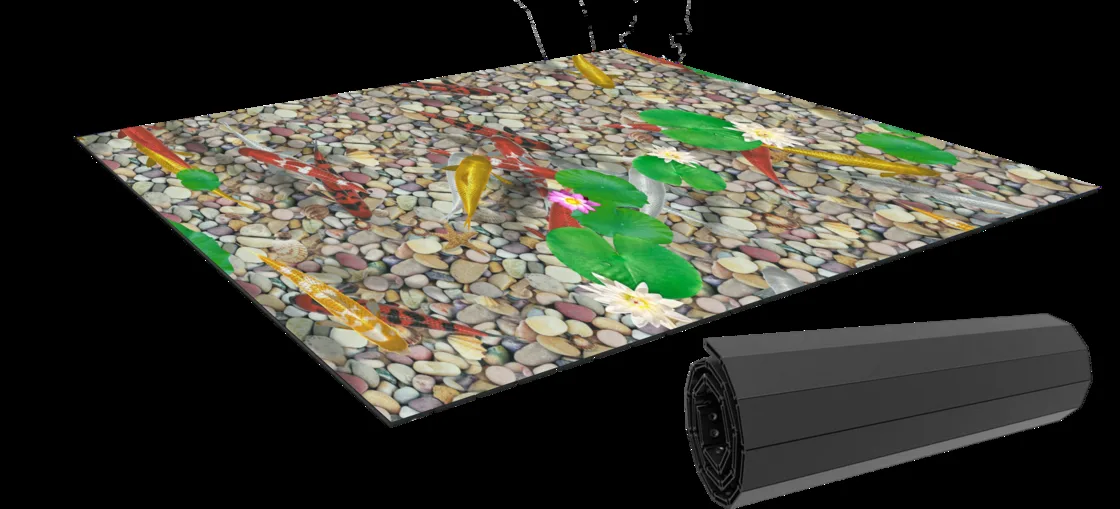

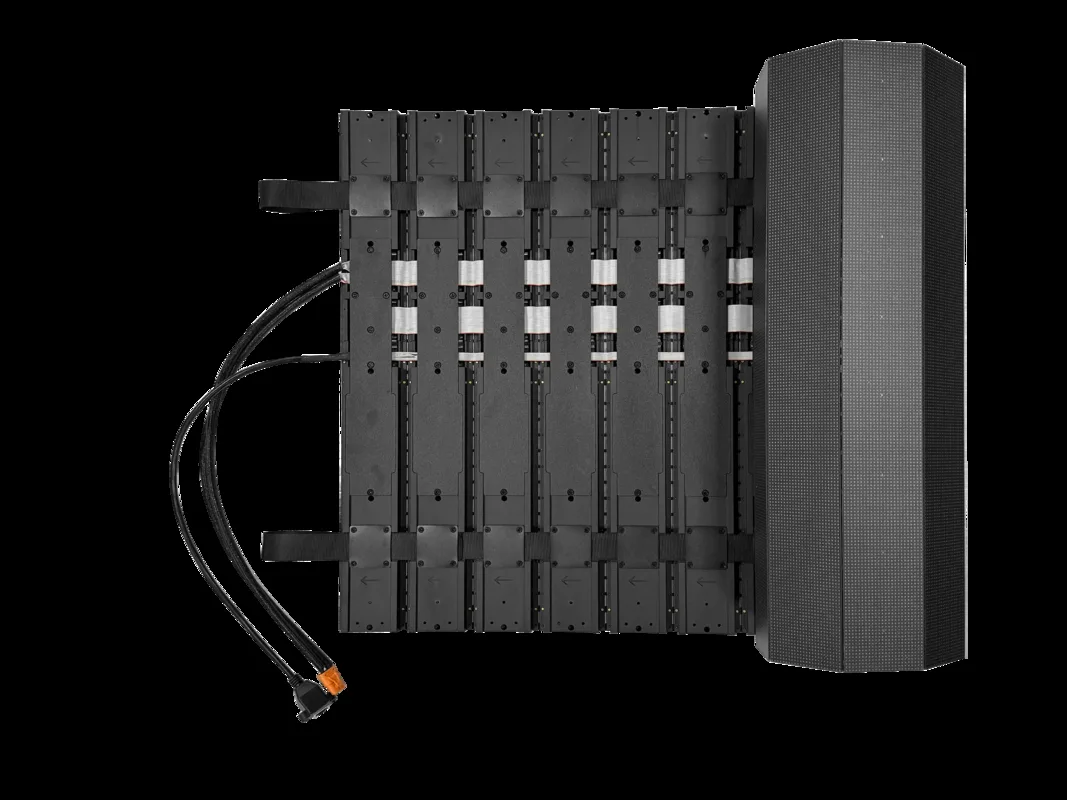

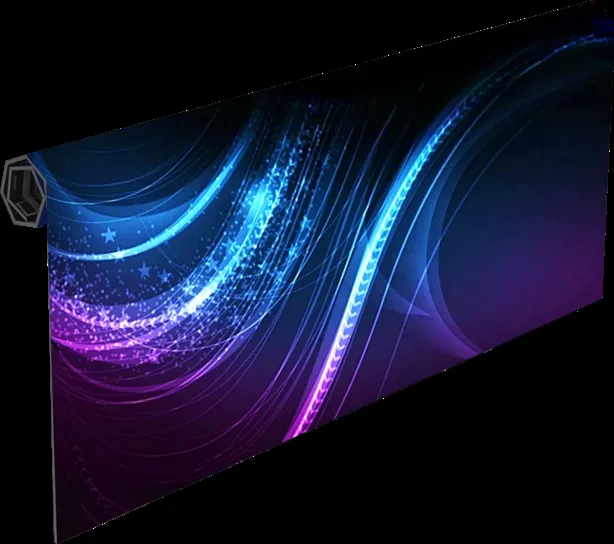

The entire screen can be rolled up with a core diameter of just 10cm,significantly reducing the storage space required.

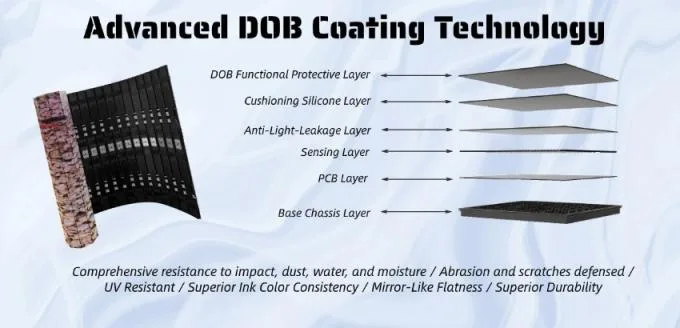

- 01Advanced DOB Coating Technology
- 02DOB Functional Protective Layer
- 03Cushioning Silicone Layer
- 04Anti-Light-Leakage Layer
- 05Sensing Layer
- 06Base Chassis Layer
In detail
Every detail. Built in.
Structure, features and applications of the SculptStone Roller LED Screen, as engineered by our R&D team.
Specifications
The numbers. Model by model.
Display performance
SSR078- Encapsulation
- SMD0606 / SMD1010 / SMD1415 / SMD2121
- Pixel Pitch (mm)
- 0.78
- Viewing Distance(m)
- 0.78
- Scan Mode
- 1/80
- Module Resolution (W×H)
- 640*80
- Brightness
- 400-600cd/m² (Adjustable) / 400-800cd/m² (Adjustable)
- Viewing Angle (H/V)
- 150°/150°
- Contrast
- >3000:1
- Refresh Rate
- 3840Hz
- Gray Scale
- 14-16bit(Optional)
Structure & build
SSR078- Unit Size (mm)
- 500*1000*17
- Module Size (mm)
- 500*62.5*17
- Material
- Aluminum Alloy
- Weight (kg)
- 17Kg per sqm
Power
SSR078- Max Power Consumption (Tested at 1000 nits white balance)
- ≤600W/m²
- Average Power Consumption
- 200W/m²
- Working Voltage (V)
- AC100~240V
Operation & certification
SSR078- Working Temperature
- -10 ℃ ~+40 ℃
- Working Humidity
- 10%~70%RH (No condensation)

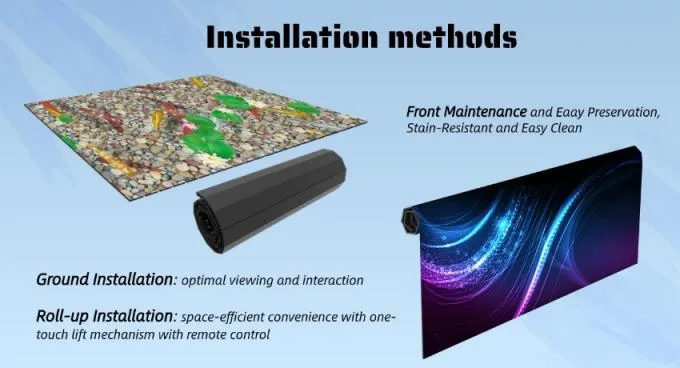

- Installation
- Roll-up Installation/Tiling/Wall Mounting
- Protection
- IP65/IP41
- Certification
- CCC, CE, FCC, RoHS
Specifications depend on the confirmed configuration. Request the full datasheet →
