VCI Series
VerditerColor Standard LED Module
Where Ancient Pigments Achieve Digital Immortality
Model
- Pixel Pitch (mm)
- 1.25
- Module Size (mm)
- 320*160
- Brightness
- 500cd/m² / 450cd/m²
- Refresh Rate
- 3840Hz
01 / 06Overview
Where Ancient Pigments Achieve Digital Immortality

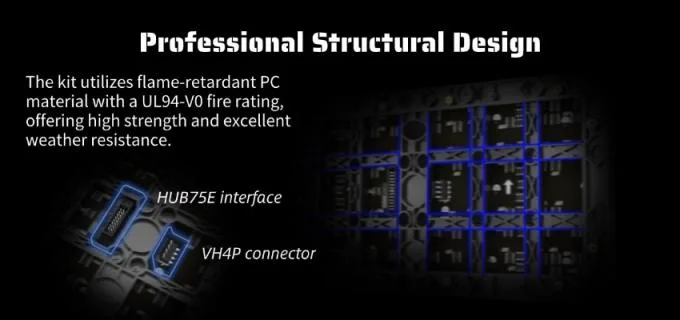

The kit utilizes flame-retardant PC material with a UL94-Vo fire rating, offering high strength and excellent weather resistance.
With a ≥ 3840Hz refresh rate, the full series uses high-efficiency PWM chips for precise and flexible control.

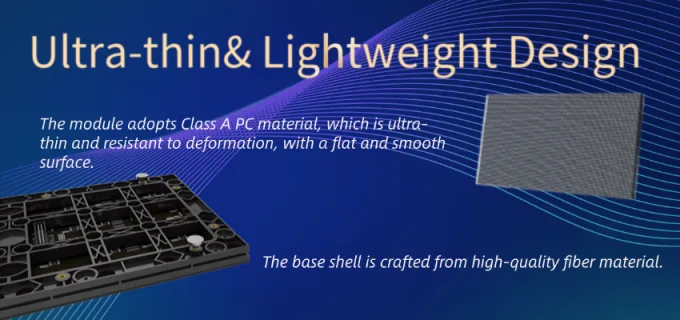

The module adopts Class A PC material, which is ultra-thin and resistant to deformation, with a flat and smooth surface.
Experience profound 3D depth, instant 2D/3D switching, and a high-refresh-rate platform ready for VR.

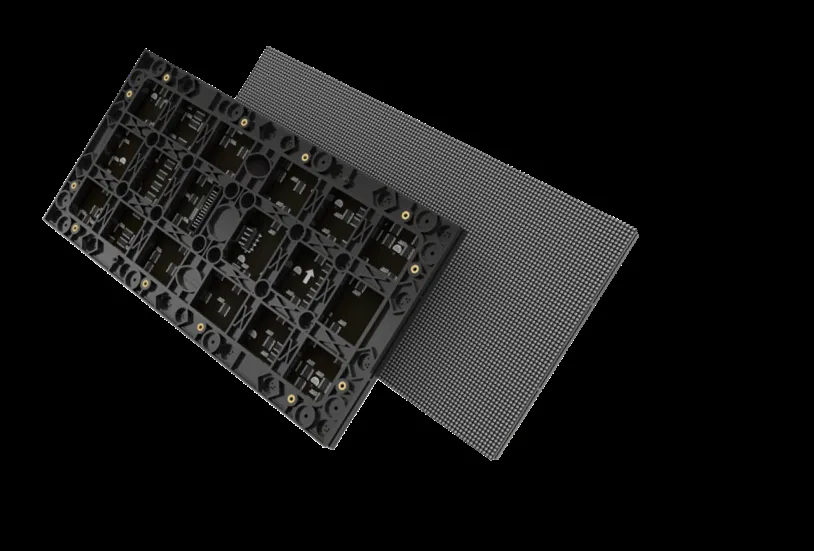

- 01VerditerColor Standard Module

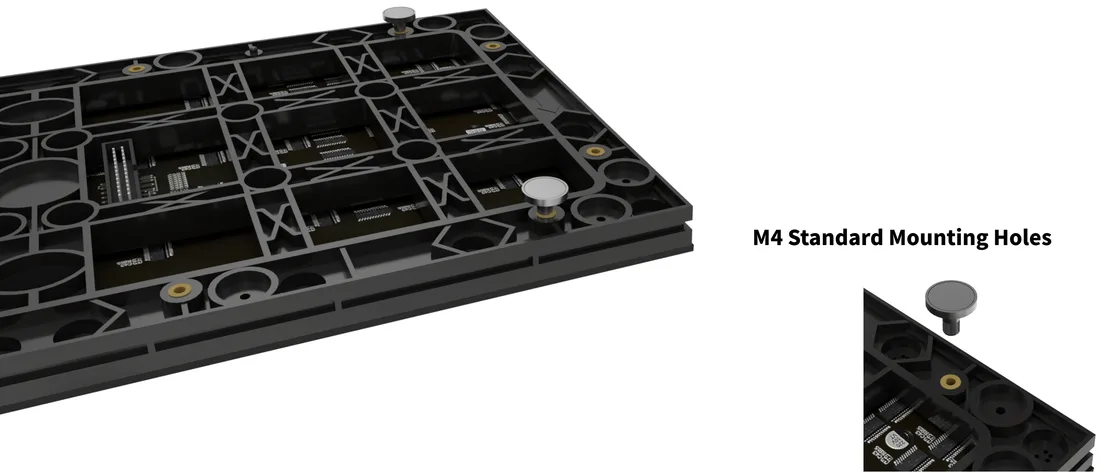

- 02Professional Structural Design

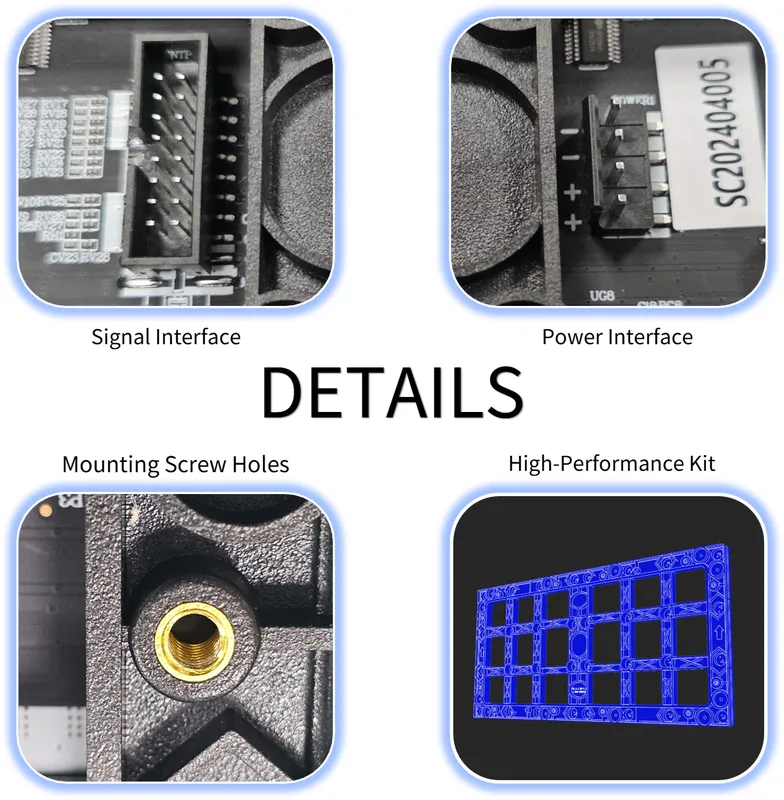

- 03HUB75E interface
- 04VH4P connector
- 05PWM driver IC
- 06Ultra-thin & Lightweight Design
In detail
Every detail. Built in.
Structure, features and applications of the VerditerColor Standard LED Module, as engineered by our R&D team.
Specifications
The numbers. Model by model.
Display performance
VCS1.2- Encapsulation
- SMD3in1
- Pixel Pitch (mm)
- 1.25
- Module resolution
- 256*128
- Unit Area (m²)
- 0.0512
- Brightness
- 500cd/m² / 450cd/m²
- Brightness Uniformity
- ≥97%

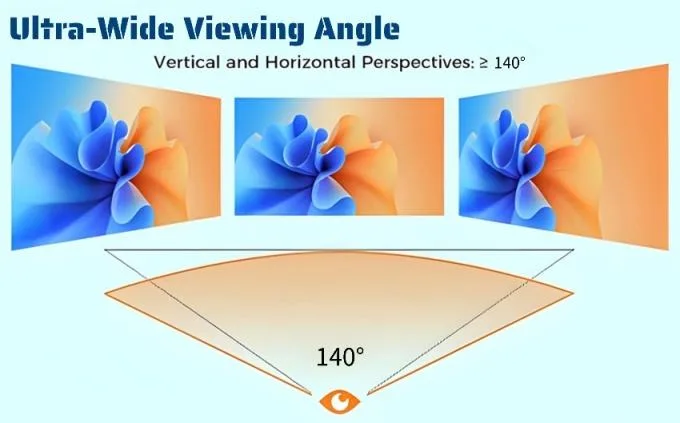

- Viewing Angle (H/V)
- 140°/140°
- Contrast
- 6000:1
- Scanning Method
- 1/64Scan
- Frame Rate
- 50/60Hz
- Refresh Rate
- 3840Hz
Structure & build
VCS1.2- Module Size (mm)
- 320*160
- Module weight (g/sheet)
- 480g±5 / 450g±5 / 350g±5
- Flatness
- ≤0.3mm / ≤ 0.5 mm
Power
VCS1.2- Max Power Consumption (Tested at 1000 nits white balance)
- ≤390W/m²
- Average Power Consumption
- 130W/m²
- Working Voltage (V)
- DC:4.5
Operation & certification

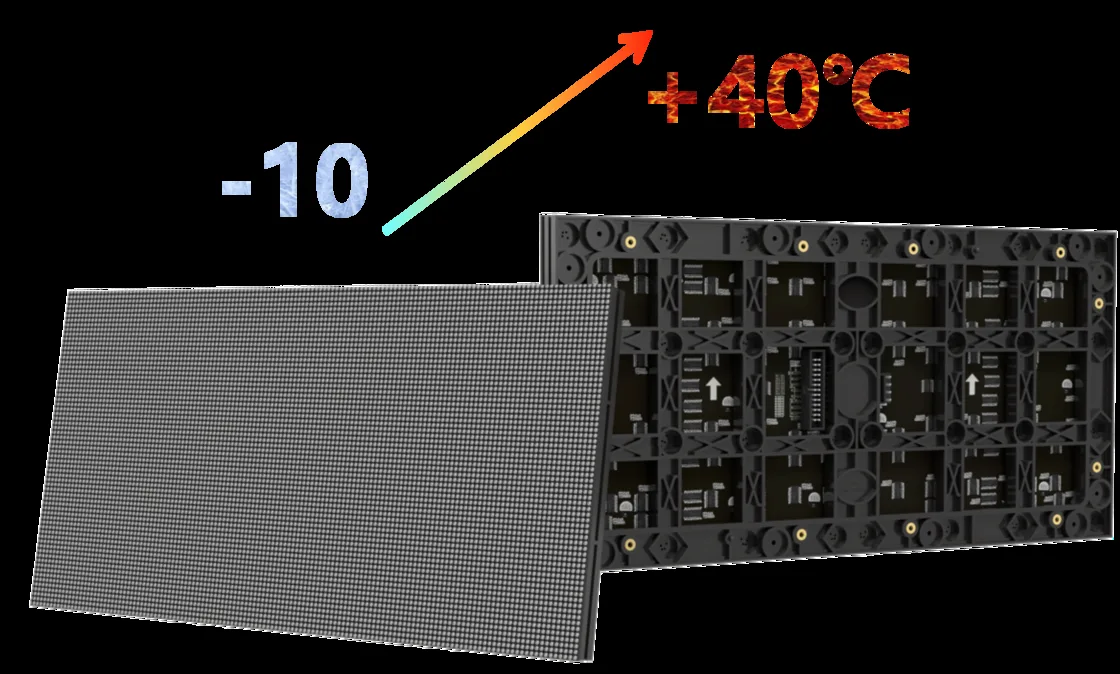

VCS1.2- Working Temperature
- -10 ℃ ~+40 ℃
- Working Humidity
- 10%~60%RH (No condensation)
- Maintenance
- Front/Rear Maintenance
- Certification
- CCC, CE, FCC, RoHS
Specifications depend on the confirmed configuration. Request the full datasheet →
